    Multi Channel Integration 1 To 96 Channels Direct Plug In Type Precision Pipette Plunger Injector

    Ask Lasest Price
    Brand Name : Hicorpwell
    Model Number : HCW-Piston 96
    Certification : CCC & CE
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets Per Week
    Delivery Time : 10-15working days
    • Product Details
    • Company Profile

    Multi Channel Integration 1 To 96 Channels Direct Plug In Type Precision Pipette Plunger Injector

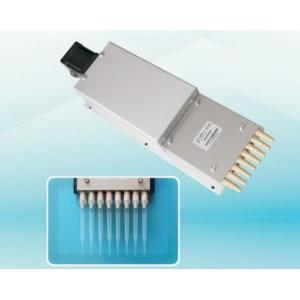

    Multi-channel Integration 1 to 96 channels Direct Plug-In Type Precision Pipette Plunger Injector
    Product characteristics:

    1. A set of driving mechanism drives the multi-syringes to realize multi-channel simultaneous suction and drainage. The single plunger structure has long stroke, high control precision and long service life.

    2. The disposable Tip can be inserted directly to avoid carrying pollution caused by traditional sampling methods.

    3. Multi-channel integration, saving space and cost;

    Channels can be selected from 1 to 96 channels in different quantities. Specifications and sizes can be customized to meet customers' needs.

    Application :

    It is mainly used in situations requiring simultaneous control of multi-channel fluids, such as chemiluminescence, nucleic acid extraction, molecular hybridization, sample preparation, gene sequencing and other automatic analyzers.


    Specification250ul650ul
    Trip (mm)2565
    Screw lead (mm)1.58752.54
    Stepper motor step angle(°)1.81.8
    Motor current (A)1.51.5
    Linear distance per step of motor (mm)0.00793750.0127
    Fluid volume per step of motor (ul/step)0.0793750.12927025
    Accuracy of suction and drainage2.0%2.0%
    CV1.0%1.0%
    Life cycle(million)100100
    Working pressure0.5MPa0.5MPa
    Number of threaded interface (pcs )11
    Center distance between adjacent channels9MM9MM
    Thread Interface FormM5M5
    overall dimension (mm)217*88*44262.6*90*43.8

    Remark:

    Note 1: The nominal accuracy of suction and drainage is measured at a range of no less than 2% displacement.

    Note 2: The nominal repetition accuracy is measured at a range of no less than 2% displacement.

    Note 2: The above parameters can be customized according to the actual situation.
