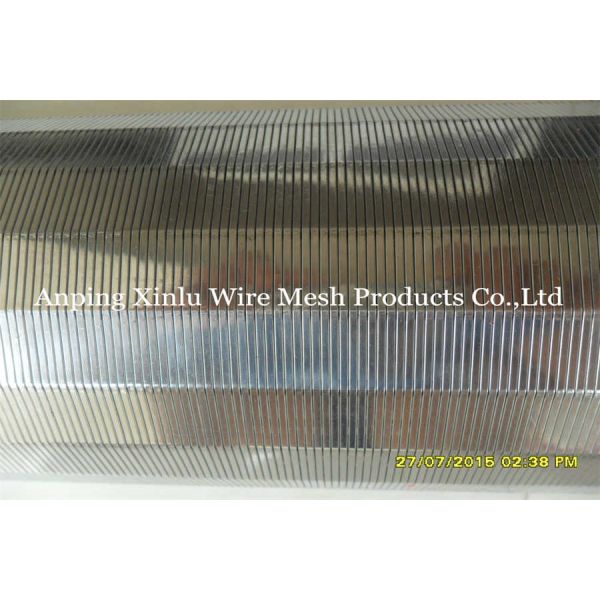

Wedge Wire Wrapped Sand Control Johnson Screen Pipe for Oil Well / Water Pump Filter
Wedge Wire Wrapped Sand Control Johnson Screen Pipe for Oil Well / Water Pump Filter
Product Quick Details:
Type: Triangle type, V wire, Wedge Wir
Material: stainless steel low carbon galvanized steel
Size:0.1mm~5mm
Inside diameter size:30mm-1000mm
Product Name: Wedge Wire Sand Control Screen Tube Well Strainer, Johnson V Wire-Wound Strainer Sand Control Screen Pipe, v wire water well screen, wire wrapped screen pipe, Johnson
specialty screen, spiral screen tube, strainer pipe, rod based
continuous slot wedge wire screen, drilling well screen, reversed
rolled slot well screens, screen cylinders, continuous-slot well
screen, Well screen, water filter, filtration element
Wedge Wire wrapped Sand Control Johnson Screen Pipe designed for
improve efficiency of water and other liquid cleaning,the same as
pipe base screen and bridge slot screen, wire wrapped screen
innovate for increasing the opening area and make a maximum
screening efficiency for customer specific requirement.
Specification: Wedge Wire wrapped Sand Control Johnson Screen Pipe
Profile of wire wrapped screen: Triangle type, v type, wedge wire
type
Material: stainless steel wire wrapped screen
(SS304/SS304L/SS316/SS316L),low carbon galvanized steel wire
wrapped screen.
Slot opening area size: 0.1mm~5mm
Inside diameter size: 30mm-1000mm
length: 6m or customer demand.
End shape:Coupling thread end. flange type end ,plain end etc
Application: Wedge Wire wrapped Sand Control Johnson Screen Pipe
Wire wrapped screen is a metal mesh component used for screening
filtration, so it widely used in screening, filtration, dewatering,
deliming
It has high strength, rigidity and load carrying capacity,and can
be made into various shapes of rigid screening filter devices.
Most of them are used in oil wells, gas wells, water wells, and
also in filters, food processing, manufacturing, chemicals, etc.
Advantage: Wedge Wire wrapped Sand Control Johnson Screen Pipe
The continuous gap of wire wrapped screen greatly increase flow
area, so it is better to touch with water layer.
The V-shaped profile structure avoids blocking and ensure smooth
passing.
Continuous pores can be used effectively for a long time.
The wire wrapped screen has a solid structure, high opening area
and accurate slot size.
It is easy to backwash,and has long service life, more safe and
reliable, moreover it is lower cost
Package
Packed with bubble bag package for each pecs; It is packed by Wove
bag; Wooden box; Pallet
We can designed package as customer needs
Delivery time
The lead time is 7-10days for small quantity, and it also decide to
your quantity and products related requirements
Custom range: Wedge Wire wrapped Sand Control Johnson Screen Pipe
1. Material : Low carton, mild steel wire, iron wire, low carton
galvanized steel (LCG), stainless steel (201, 205, 304,316, 316L, 321 etc.), Duplex stainless steel
2. Diameter: DN 20-1000mm (1-40inch)
3. Slot size:
0.05mm,0.08mm,0.1mm,0.15mm,0.20mm,0.25mm,0.30mm,0.50mm,0.75mm,1.0mm...
6.00mm also achieved upon request.
4. Wrapped wire 1*2mm, 1.5*2.5mm, 1.5*2mm, 1.8x2.5mm, 2*3mm,
2.2*3.5mm, 2.3*3.5mm, 2.5x4mm, 3*4.6mm
5. Support rod 2*3mm,2.5x4mm,3*4.6mm VEE wire or ø2.5-6.0mm round
wire
6. Length: 500mm,1000mm,1500mm,2000mm,..... ,6000mm.
7. End connection: groove connection, Plain beveled ends for butt welding (welded ring)or threaded male
&female coupling (API STC, PT NPT, BSP, G, ).(spiral), Flange, Closed up
8. Surface Electrolytic polishing, Pickling and polishing or
Galvanized
Wedge Wire wrapped Sand Control Johnson Screen Pipe Data reference table:
sizes
(inch) | OD
(mm) | slot
(mm) | Length
(m) | Tenslile
strength | collapse
Strength | wrap wire
vee-shaped wire (Width x height:mm) | support rod
Round wire (mm) |
| 3-1/2 | 88.9 | 1 | 2.9 | >22 | 10.2 | 2.3 x 3.5 | 3.0MMx22 |
| 4-1/2 | 114.3 | 1 | 2.9 | >28 | 11.5 | 2.3 x 3.5 | 3.0MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | >40 | 12.8 | 2.3 x 3.5 | 3.8MM×32 |
| 6-5/8 | 168.3 | 1 | 5.8 | >33 | 12.8 | 2.3 x 3.5 | 3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | >83 | 45 | 3.0 x 6.0 | 5.OMM×32 |
| 8-5/8 | 219.1 | 1 | 5.8 | >34 | 21.9 | 2.3 x 3.5 | 3.8MMx48 |
| 8-5/8 | 219.1 | 1 | 5.8 | >50 | 38.2 | 3.0 x 4.6 | 4.0MMx48 |
| 8-5/8 | 219.1 | 1 | 5.8 | >60 | 46 | 3.05 x 6.35 | 5.0MMx48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | >50 | 9 | 2.5 x 4 .0 | 3.8MM×55 |
| 10-3/4 | 273.1 | 1 | 5.8 | >60 | 39.5 | 3.0 x 4.6 | 4.5MMx55 |
| 10-3/4 | 273.1 | 1 | 5.8 | >100 | 48 | 3.2 x 6.0 | 5.0MM×55 |
| 12-3/4 | 323.9 | 1 | 5.8 | >120 | 37.2 | 3.0 x 6.0 | 4.0MMx56 |
| 14 | 355.6 | 1 | 2.9 | >80 | 37.8 | 3.0 x 5.0 | 4.0MMx59 |
| 16 | 426 | 1 | 2.9 | >80 | 37.5 | 3.0 x 5.0 | 4.OMM×64 |
| PROFILE WIRE | | | | | | | | |
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | | | | | |
ROUND |
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
FAQ
The Important Question: How Many Meters of the well deep can be used in?
A: Common screen pipes can be used in wells with a depth of 200-300
meters.
Large wire can also be customized for 650m deep well.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass
production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to
arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
--------------------------------------------------------------------------------------------------------------
