| Brand Name : | Altrasonic |
| Model Number : | HS-7015-4Z |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T or western Union |
| Supply Ability : | 5,000 units per month |
| Delivery Time : | 7 working days after received your payment |
Specifications:
Model | HS-7015-4Z |
Frequency | 15khz |
Output power | 2600watt |
Joint bolt | M20*1.5 |
Ceramic disc Diameter | 70mm |
Quantity of Ceramic discs | 4pcs |
Amplitude | 16um |
Application | Welding |
Description:

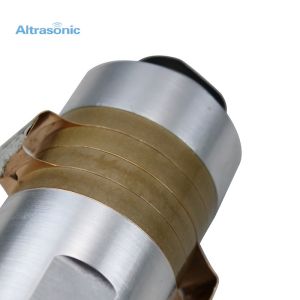

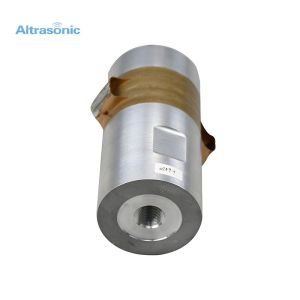

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applications:
Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.
We also provide replacement of famous brands such as Branson, Dukane, Rinco etc.

|
