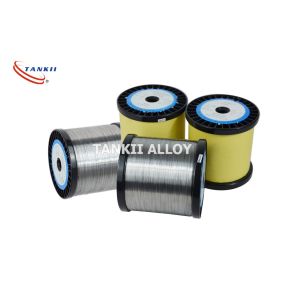

    ASME Nonmagnetic Nicr Alloy Nicr6015 Heating Resistance Wire

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : Ni60Cr15
    Certification : ISO9001
    Payment Terms : L/C, T/T, Western Union
    • Product Details
    • Company Profile

    ASME Nonmagnetic Nicr Alloy Nicr6015 Heating Resistance Wire

    NiCr60/15 Nicr Alloy , Nickel Chromium Resistance Wire 0.05mm-10.0mm Diameter


    NiCr60/15


    Description
    AlloyStandard Strand Construction, mmResistance,Ω/mStrand Diameter Nominal, mmMeter per Kilo
    NiCr 80/2019×0.5440.233-0.26926
    NiCr 80/2019×0.610.205-0.250
    NiCr 80/2019×0.5230.276-0.3062.6730
    NiCr 80/2019×0.5742.8725
    NiCr 80/2037×0.3850.248-0.3022.7626
    NiCr 60/1519×0.5080.286-0.318
    NiCr 60/1519×0.5230.276-0.30430
    Ni19×0.5740.020-0.0272.8721
    Details
    Propertes/GradeCr20Ni80Cr30Ni70Cr15Ni60Cr20Ni35Cr20Ni30
    Main Chemical compositionNiRestRest55.0-61.034.0-37.030.0-34.0
    Cr20.0-23.028.0-31.015.0-18.018.0-21.018.0-21.0
    Fe≤ 1.0≤ 1.0RestRestRest
    Max. continuous service temp. of element12001250115011001100
    Resistivity at 20oC (μ Ω · m)1.091.181.121.041.04
    Density (g/cm3)8.48.18.27.97.9
    Thermal conductivity(KJ/m· h· oC)60.345.245.243.843.8
    Coefficient of lines expansion(α × 10-6/oC)1817171919
    Melting point (approx. )( oC)14001380139013901390
    Elongation at rupture (%)> 20> 20> 20> 20> 20
    Micrographic structureausteniteausteniteausteniteausteniteaustenite
    Magnetic propertiesnonmagneticnonmagneticnonmagneticnonmagneticnonmagnetic
    Chemical CompositionNickel , Chrome
    ConditionBright/Acid white/Oxidied Color
    GradeNi80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe, Ni30Cr20 Ni80, Ni70,Ni60, Ni40,
    AdvantageNichrome's metallurgical structure confers them a very good plasticity when cold.
    CharacteristicsStable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
