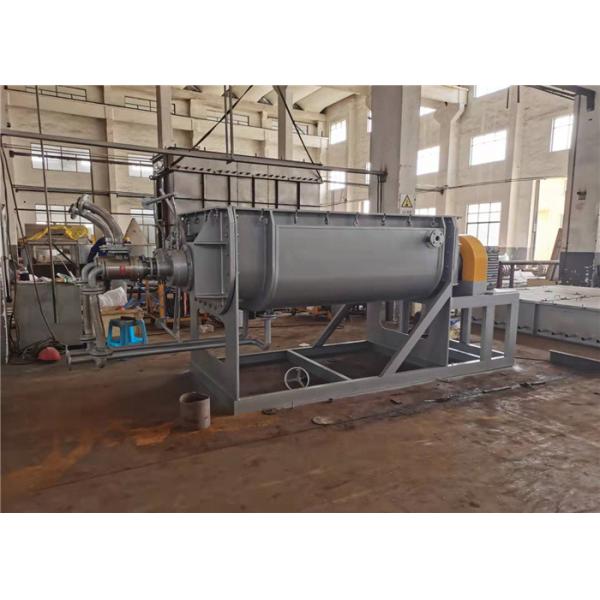

Made in China Jyg Series Hollow Blade Paddle Dryer/Food Waste Dryer
for Coal Ash in Chemical Industry
Product Introduction
With the acceleration of social and economic development and
urbanization, the amount of sewage sludge in urban areas is
increasing. Like domestic garbage, if it cannot be disposed of
safely, it will seriously affect the living environment. The
effective means of sewage treatment is to press and dewater the
sewage and then dry the sludge. The volume of the dried sludge can
be reduced by 4 to 5 times. The product is odorless and free of
pathogens. It can be used as fertilizer, soil improver and
substitute energy, etc.
Because the agitating blade is shaped like a paddle, it is called a
paddle dryer. The product can indirectly heat or cool the paste,
granular, powder, and slurry materials, and can complete unit
operations such as drying, cooling, heating, sterilization,
reaction, and low-temperature combustion. The special wedge-type
stirring heat transfer blades in the equipment have high heat
transfer efficiency and self-cleaning function of the heat transfer
surface.
Working Principle
steam or thermal oil injected in the rotary shafts and the hollow
blades.Wet sludge is fed into the paddle dryer machine by the screw
feeder or sludge pump, and then is heated indirectly by the heat
medium.New surface area is released continuously while the shafts
rotate so that hot soda ash gets cooled in a high thermal
efficiency.
Dry product is discharged through the discharge valve, while the dusty air is cleaned in the
cyclone dust collector.
Technical parameters
| Model | KJG-2.7 | KJG-24 | KJG-52 | KJG-81 | KJG-110 |
| Heat transfer area | 2.7 | 24 | 52 | 81 | 110 |
| effective volume | 0.06 | 1.53 | 3.96 | 6.43 | 9.46 |
| revolution | 15-30 | 10-20 | 10-20 | 5-15 | 5-10 |
| power | 2.2 | 11 | 30 | 55 | 95 |
| width of dryer body | 306 | 1118 | 1474 | 1828 | 2210 |
| total width | 736 | 1474 | 1854 | 2286 | 2668 |
| length of dryer body | 1956 | 3454 | 5258 | 6020 | 6122 |
| total length | 2972 | 6147 | 8306 | 9678 | 9880 |
| distance between feeding and disharging | 1752 | 3150 | 4954 | 5562 | 5664 |
| height in center | 380 | | 1066 | 1220 | 1220 |
| total height | 762 | | 2032 | 2464 | 2668 |
| steam inlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
| water outlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
Applications
1. inorganic chemical industry
calcium nitrate, calcium sulfate, calcium paper, calcium carbonate,
magnesium hydroxide, carbon black, iron black, iron oxide red,
soda, soda ash, etc.;
2, organic chemical industry
dyestuff, industrial plastic, polystyrene, polypropylene, high
density polyethylene, polypropylene, etc.;
3, smelting industry
tar, sulfur, nickel ore concentrate ore concentrate removing
phenol, etc.;
4, food, medical industry
starch, pharmaceutical, salt, protein, etc.;
5, other: sludge, waste residue, chicken feed, lees, etc.;
Features
- Compact struture, small occupied space.
- High degree of heat conducting, best heat effeat, attain
80-90%,saving energy equipment.
- Low speed, 10-40 Rpm, reduce the damage of the particles and flaky
material.
- Wide range of application, easy to operate, drying time is
adjustable.
- Attached equipment is simple, low investment.
- Multi-usage, such as drying, cooling, gas recovery, responding,
heating and so on.
