    Anticorrosive RAL 7035 Outdoor Battery Cabinet Eight Layer One front door


    High Anticorrosive Stainless Steel Battery Storage Cabinet Eight Layer Outdoor Solar Battery Enclosure


    1. Outdoor battery cabinet introduction


    The outdoor battery cabinet can hold eight layers of batteries and 5U switch, including anti-shake battery fixing plates. The cabinet is made of sandwich structural plate, stainless steel, with a front door and DC48V compressor air conditioner installed on the door. In addition, it also has LED light and light switch. Suitable for outdoor environment, waterproof, dustproof, sunproof and fireproof.


    2. Technical data of battery cabinet


    No.DescriptionSpecification
    ISpecification of cabinet
    1ModelET9090220-BA
    2External SizeW 900×D900×H2200mm
    3ColorOutdoor anticorrosion powder coating RAL7035
    4Installation shelf&rack8 battery shelf and 5U 19inch rack, including battery fixing plates with anti-shake
    5DoorOnly front door, door open angle can be reach 110°,
    6LockOutdoor special anti-theft three point locking(bottom, top and middle)
    7MaterialStainless steel, double wall with heat insulation,outer wall is 1.5mm, inner wall is 0.8mm.
    8Cabinet InstallationPad mount
    9Cable EntryLocated on the bottom
    10Lifting4 ears on the cabinet base
    11EarthingGrounding copper bar
    12Working Temperature-40°C~+75°C
    13Protection LevelIP55
    14Relative Humidity5% ~ 100%
    15Atmospheric Pressure62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
    16Solar Radiation Intensity1120 ×(1±5%)W/m2
    IISpecification of compressor air conditioner
    1Rated Cooling Capacity2500W
    2Airflow800W
    3Rated Input Voltage-48VDC
    4Rated input power750W
    5RefrigerantR134a
    6Surface treatmentRAL7035
    7Noise65dB
    8IP GradeIP55
    9Weight70kg
    10Operating Ambient Temperature-40-55
    11Installation ModeEmbedded
    12Size (L×W×H) with Flange940*482*300mm
    IIIOther accessories
    1LED lightDC48V
    2LED light switchControl light on or off
    3. Applications

    Outdoor telecommunication battery cabinet is mainly used in the field of traffic, CATV, electric power etc. It can be used for back up power working together with rectifier system after mains power fails. Suitable for different conditions: gale, rain,snow,hail, frost, smog and solar radiate etc.


    4. Feature


    • Embedded structure design, effectively ensure the door is prized.
    • Vandal proof design with 3 pointing locking system.
    • Sandwich structure panel, double layer galvanized steel plate with PU heat insulation
    • Maintin method: front door.
    • Cooling by Thermoelectrical cooler.
    • The perfect earthing system protect it from thunder.
    • Cabinet meet the requirement of IP55 level of protection.
    • Waterproof, anti-corrosion, anti sand and anti ultraviolet, ensure cabinet can work longer in a harsh outdoor environment.

    5. Various cooling system for different type of battery


    • Natural ventilation cooling system
    • Air conditioner cooling system
    • Heat exchanger cooling system
    • Fan cooling system
    • TEC cooling system

    6. Battery Storage Cabinet Size Diagram

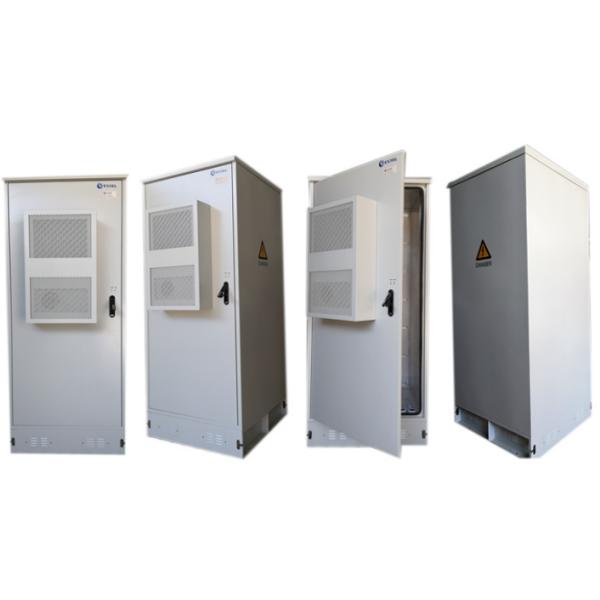

    7. Battery Storage Cabinet Pictures,



    8. Battery Storage Cabinet Details
