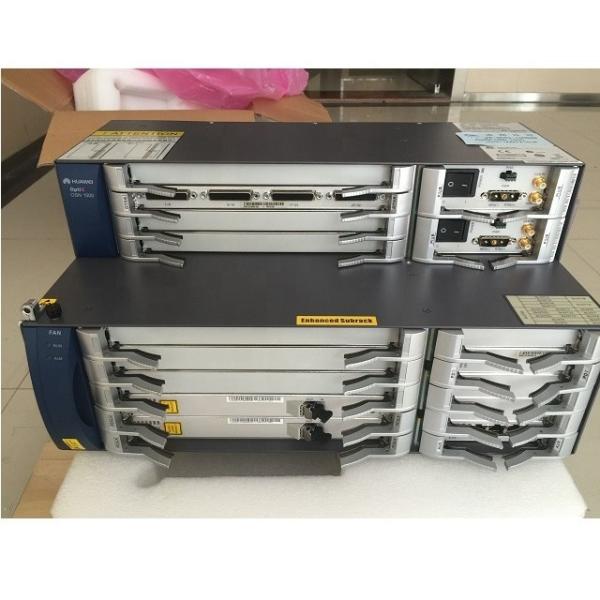

The OptiX OSN 1500 intelligent optical transmission system (the
OptiX OSN 1500 for short) developed by is the next-generation
intelligent optical transmission equipment.
The OptiX OSN 1500 is of a universal switch architecture. That is,
the OptiX OSN 1500 can be used in packet mode or in TDM mode. When
used with the other equipment of , the OptiX OSN 1500 supports
various networking applications, such as the pure packet mode
application, hybrid networking application (overlay networking of
the packet mode and TDM mode), and pure TDM mode application. By
using a proper networking solution, the data service and
conventional SDH service can be processed in the optimal manner.
Therefore, the OptiX OSN 1500 efficiently transmits voice, data,
SAN/Video, and video services on the same platform.
In packet mode, the OptiX OSN 1500 supports the following
technologies:
Multi-Protocol Label Switch (MPLS)
ETH PWE3 (Pseudo Wire Edge to Edge Emulation)
TDM PWE3
In TDM mode, the OptiX OSN 1500 supports the following
technologies:
Synchronous digital hierarchy (SDH)
Plesiochronous digital hierarchy (PDH)
Ethernet
Asynchronous transfer mode (ATM)
Storage area network (SAN)/Video
Wavelength division multiplexing (WDM)
Digital data network (DDN)
Microwave Network
1.application of the OptiX OSN 1500
2. 3G Mobile Backhauling Support, Service Transmission Improvement
To address 3G mobile backhauling requirements, 's equipment
provides complete transmission solutions in the packet domain,
converging and grooming services at the core layer of a wireless
network.
The packet domain combines a wide range of technologies for
efficient and reliable end-to-end signal transmission on 3G base
stations. Consequently, maintenance workload decreases and network
performance improves.
3 . Built-In WDM/Microwave, Flexible Networking
The OptiX OSN equipment uses the built-in WDM technology to
transmit several wavelengths over one optical fiber. In this
manner, the OptiX OSN equipment can be interconnected with the WDM
equipment.The OptiX OSN equipment supports the radio technologies to transmit
the conventional SDH service over radio. In this manner, the radio
equipment can be used as a substitute to access the SDH service.
System performance specifications
Item
Specifications
Protection
MPLS tunnel APS
128
(MPLS tunnel APS and MPLS PW APS share resources.)
MPLS PW APS
Number of supported MPLS PW APS groups
128
(MPLS tunnel APS and MPLS PW APS share resources.)
Number of bound members
512
LPT
16
LAG
Number of LAGs
16
Number of members in each LAG
8
Maintenance
MPLS tunnel OAM
256
(MPLS tunnel OAM, MPLS PW OAM, and ETH-OAM share resources.)
MPLS PW OAM
256
(MPLS tunnel OAM, MPLS PW OAM, and ETH-OAM share resources.)
ETH-OAM
(MPLS tunnel OAM, MPLS PW OAM, and ETH-OAM share resources.)
MD
16
MA
256
MEP
512
Service
E-Line service
1K
E-LAN service
64
E-AGGR service
4
CES service
64
IGMP snooping
Number of multicast groups
256
Number of members in a multicast group
2K
HQoS
Service WRED policy
128
Port WRED policy
1
V-UNI ingress policy
256
V-UNI egress policy
256
Port policy
100
QinQ policy
256
DS domain
8
Number of V-UNI ingress flows
2K
Number of traffic classification rules
20
ACL number
0
Others
MPLS tunnel
Unidirectional tunnels
512
Bidirectional tunnels
256
Static PW
Bidirectional PWs
512
QinQ link
1K
MAC address
Number of MAC addresses supported by an E-LAN
2K
Number of MAC addresses supported by the equipment
256K
VLAN
4K
PDH boards that the OptiX OSN 1500A supports
Board
Description
Board
Description
R1PL1
16xE1 service processing board
N1PL3A
3xE3/T3 service processing board (The interfaces are available on
the front panel.)
R1PD1
32xE1 service processing board
N2PL3A
3xE3/T3 service processing board (The interfaces are available on
the front panel.)
R2PD1
32xE1 service processing board
N1DXA
DDN service converging and processing board
R1L12S
16xE1/T1 switching access board (120 ohms)
R1L75S
16xE1 switching access board (75 ohms)
PDH boards that the OptiX OSN 1500B supports
Board
Description
Board
Description
R1PL1
16xE1 service processing board
N1PD3 and N2PD3
6xE3/T3 service processing board
R3PD1, R1PD1, and R2PD1
32xE1 service processing board
N2PQ3
12xE3/T3 service processing board
N1PQ1 and N2PQ1
63xE1 service processing board
N1DX1
DDN service accessing and converging board
N1PQM
63xE1/T1 service processing board
N1DXA
DDN service converging and processing board
N1PL3 and N2PL3
3xE3/T3 service processing board
N1SPQ4 and N2SPQ4
4xE4/STM-1 electrical processing board
N1PL3A and N2PL3A
3xE3/T3 service processing board (The interfaces are available on
the front panel.)
