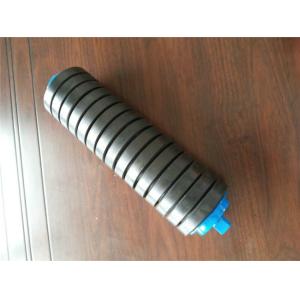

Conveyor Impact Idlers Rollers Made Of Impact Rubber Coating
Rollers
The impact roller is used at the material receiving area of the
belt conveyor, which can reduce the impact to the conveyor belt
when material falls so as to extend the service life of the
conveyor belt.
BuMtesD impact roller is specially suitable for mining application,
which is an effective way to reduce a sudden and large load
capacity, friendly to the rollers under the impacting zone.
The impact roller Features:
1. Ideal choice for high impact loading
2. Perfect solutions for heavy duty conveyor loading and
transferring point;
3. Can withstand repeated impact and vibration
4. Excellent mechanical performance
5. Applicable to areas with freefall onto the conveyor
6. Light weight, Low noise and stable runnin
7. Meet CEMA, DIN, ASTM and Australian Standards' requirements
8. Hot bonded rubber impact rings and rubber casting technology
available
9. Robust heat-resistant rubber discs
10. Fire Resistance & Anti Static rubber available
11. Longer life span
12. Best performance
13. Highly durable
14. Rust proof
conveyor roller parameter
| Pipe diameter/mm | Roller Dia(mm) | Length Scope(mm) | Shaft Dia(mm) | Bearings Type(Min-Max) | Roller's TubeThickness |
| 60 | 72 | 150-2500 | 20; 25 | 204 | We can make as your request |
| 60 | 89 | 20; 25 | 204 |
| 76 | 89 | 20; 25 | 204 205 |
| 76 | 108 | 20; 25 | 204 205 |
| 89 | 108 | 20; 25 | 204 205 305 |
| 89 | 133 | 20.25 | 204 205 305 |
| 89 | 127 | 20;25 | 205 206 305 |
| 89 | 152 | 20; 25 | 204 205 305 |
| 108 | 133 | 20; 25; 30 | 205 206 305 306 |
| 108 | 159 | 20; 25; 30 | 205 305 306 |
| 133 | 159 | 20; 25; 30.35 | 205 206 207 305 306 307 |
| 133 | 194 | 20; 25; 30; 35 | 205 206 207 305 306 307 |
| 89 | 116 | 20; 25 | 207 305 306 307 308 |
| 89 | 120 | 20; 25 | 204 205 |
Product Description
1. Roller idlers Dia 89mm-219mm, length 150-3500mm, which are used
in the steel industry, harbor, coal industry, power industry,
cement industry, etc
2. Tube: Q235
3. Shaft: 45# STEEL
4. Bearing: Double Row Deep Groove Ball Bearing 2RS&2Z with C3
clearance.
5. Seals: Grease retaining inner seal with Multi-stage Labyrinth
and Retention Cap with Outboard
Rubbing Flinger Seal.
6. Lubrication: Grease is Lithium soap type grease with Rust
Inhibitors.
7. Welding: CO2 gas shielded arc welding end
8. Painting: ordinary painting, hot galvanized painting, electric
static spraying painting, baked painting
