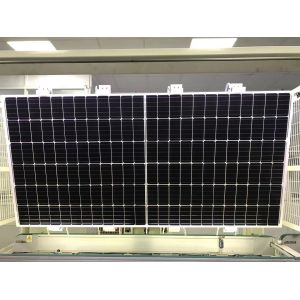

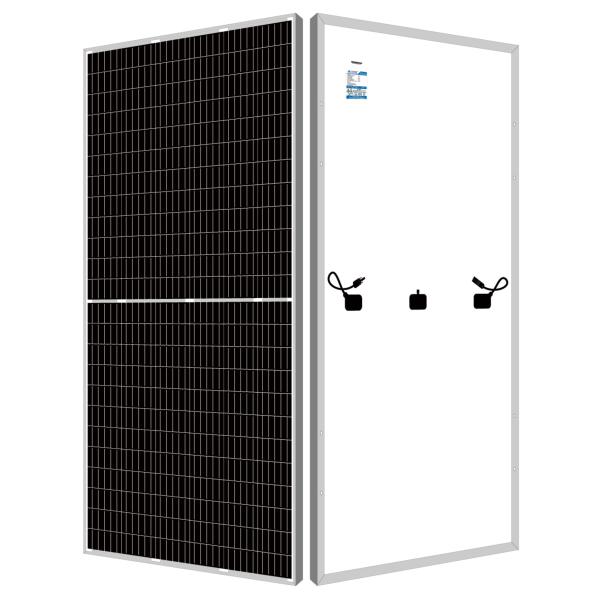

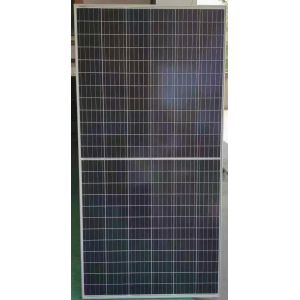

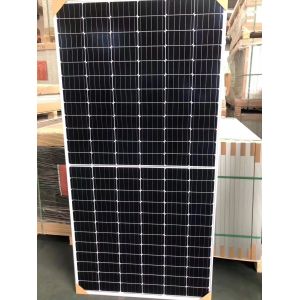

FSM400~FSM410M72HL (400W/405W/410W) MONO PERC Half Cell PV Module
Electrical Characteristics under STC
| Module Type | FSM400M72HL | FSM405M72HL | FSM410M72HL |
| Maximum Power-Pmax (Wp) | 400 | 405 | 410 |
| Voltage at Maximum Power-Vmp (V) | 41.7 | 42.0 | 42.3 |
| Current at Maximum Power-Imp (A) | 9.60 | 9.65 | 9.69 |
| Open Circuit Voltage-Voc (V) | 49.8 | 50.1 | 50.4 |
| Short Circuit Voltage-Isc (A) | 10.36 | 10.48 | 10.60 |
| Module Efficiency-ηm (%) | 19.9% | 20.1% | 20.4% |
| Operating Temperature | -40℃ to +85℃ |
| Maximum System Voltage | 1000V/1500V DC (IEC) |
| Power Tolerance | 0~+4.99W |
| Temperature Coefficients of Pmax | -0.350%/℃ |
| Temperature Coefficients of Voc | -0.289%/℃ |
| Temperature Coefficients of Isc | 0.048%/℃ |
Mechanical Characteristics
| Cell Type | MONO PERC 158.75×78.375mm |
| No. of Cells | 144 (72×2) |
| Dimension | 2008×1002×35mm |
| Weight | 22 Kg |
| Junction Box | IP68, 3 diodes (3*20A) |
| Output Cables | 4.0mm², 500mm Length (Optional) |
| Connectors | MC4 compatible |
| Packing | 31PCS/Pallet, 638PCS/40’HC |
Key FEATURES of Finergy Solar Panels
- 5BB MONO PERC half cell design generates higher output power and
higher module efficiency (up to 20.4%).
- Excellent Anti-PID performance guarantee limited power degradation
for mass production.
- Low iron tempered glass and cell surface textured design ensure
excellent performance in low-light environment.
- Certified to withstand: wind load (Rear Side max. 2400 Pa) and snow
load (Front Side max. 5400Pa) as per IEC61215 and IEC61730
standards.
- Samples tests and standard samples calibration every 3 months from
CPVT laboratory.
- Three channels of EL automatic detections and power test before
packing.
- Barcode, material and parameter binding data traceable and
searchable.
- 12 years material and craft warranty, 30 years linear power damping
warranty.
Advantages of Finergy Solar Panels Manufcaturing
- Cost Control
Finergy is in-depth study of intelligent manufacturing. We combined
international advanced automation facilities and production lines
together with ERP, MES, WMS and CRM information systems. We will
actively explore and practice the integration of the two to build a
smart factory. In the processes of promotion, we will improve the
process capacity, reduce the number of products in process, improve
the production efficiency; improve the rate of good products,
reduce the quality cost; save the labor cost, eliminate the waste
and reduce the comprehensive cost. All the power consumption of
Finergy production lines comes from solar on the workshop roofs.
It's lower priced electricity than grid.
- Quality Control
Quality is the life of Finergy. The company established a perfect
quality control system and implements the whole process quality
control of raw materials, production, inspection, warehousing,
delivery and etc. Through advanced automatic equipment and
production line, it’s able to eliminate human defects and improve
products quality. Through digital information systems, we can
achieve products quality traceability, provide customers with
efficient and quick after-sales service to protect the benefits of
customers.
Solar Systems on Finergy Workshops
Ground Mounted Solar PV Plant in Europe
