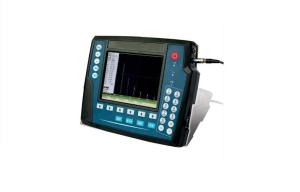

SUD-510 5.7 Inch Color LCD Digital Non Destructive Testing Machine，Tester For Welding Inspection

Product Description:
SUD-510 offers state-of-the-art technology in a package that is compact and lightweight 1.28kg. It is a full-featured and reliable instrument which can be used in various industries. suitable for various detection demands of forged pieces, welding lines, airplane parts.

Adopts an embedded computer system and a super large-scale field programmable IC design, which combine all good performance of a large ultrasound system in a very small space: at least 65dB detection sensitivity surplus will meet detection demand for large forged pieces or coarse-crystal material;

LAN Ethernet port for real-time communication with a PC (Host) and remote control; Cine loop function for recording the dynamic scanning process;

The new-type color TFT LCD results in optimize read & measure effect and visual comfort; The simple but convenient surface wave tracking function is good for immersion detection;

Together with new techniques and new functions such as DAC, RF echo display, large memory and USB port, the OND-3600 becomes a handy ultrasonic flaw detector with excellent performance. Furthermore, the fast response time of the color TFT LCD enables display of fast scanning echoes; the touch keypad is reliable and comfortable for use; Its outstanding EMC design significantly increases field anti-interference of the system.


Main Features:
Small dimension, lightweight, portable, fully-sealed, highly-reliable design especially suitable for working outdoors
Up to 640MHz sampling frequency, measurement resolution of 0.1mm with minimum range of 3mm
Operating Frequency: 0.5 – 20MHz, surplus sensitivity up to 65dB LAN port allows remote data transfer and management. It provides management to instrument parameters when the instrument is used as independent square wave pulser

High-speed USB interface allows data storage on USB drive and PC communication. To interface with a mouse to secure accurate analysis on report with A-scan

Internal charger, auto switch between “charge” and “work”. Power supplied by battery or AC mains. The operating time of onboard Li battery is more than 6 hours

Multi-software functions to meet all inspection needs, unique keypad organization and rotary knob operation, user-friendly design for menu, English/Chinese language menu options, English/Chinese input and edit functions make the inspection much easier

Automatically test the transducer frequency, tune the pulse width of square wave pulse to optimize transducer performance

Thickness alarm function, continuous storage function of waveform and various measurement modes of waveforms

Automatically calibrate instrument specifications and search the peak value

Specifications:
