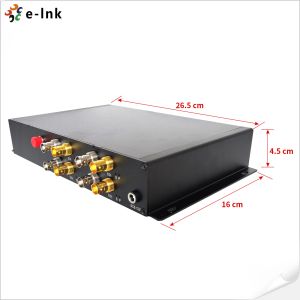

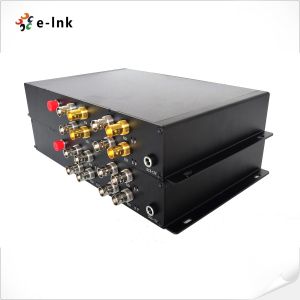

    HD-SDI 1080P HD-SDI Signal Video over Fiber Converters

    Ask Lasest Price
    Brand Name : E-link
    Model Number : LNK-SDI-4V1A
    Certification : CE
    Price : USD559/Paris
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 1000000Pairs/Month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    HD-SDI 1080P HD-SDI Signal Video over Fiber Converters

    4-Channel HD-SDI 1080P HD-SDI Signal Video over Fiber Converters

    Product Description
    Technical Indexes
    Serial TV, BNC InputSMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom
    270Mbit/s - 1.48Gbit/s
    Input number: 4
    Reflection loss: >15DB
    Equilibrium: 0-150m @1.485Gb/s
    Connector: FC/PC(SC/PC optional)
    OpticsChannel: 1
    Type: single-mode
    Wavelength: 1310nm /1550nm
    Transmission distance (550m-100Km)
    Reflection loss: > 15dB
    Dithering: < 0.2UI
    Connector: FC/PC (SC/PC optional)
    Serial TV, BNC output (EO/OE)Output number:4
    Signal level: 800mV nominal
    Rise/fall time: 200ps indication
    Overshoot: < 10% amplitude
    Reflection loss: >15dB
    Dithering: < 0.2UI
    Connector: 75Ω BNC
    Analog audioInput/ output impedance: 600Ω equilibrium
    Input/output interface: XLR
    Max. input/output level: +15 dBu
    Frequency Response: 20Hz-20KHz,±0.1dB
    SNR: > 85dB(A weighted)
    THD+N: < 0.01%@1KHz
    Crosstalk: < -90dB
    SDI video format supports625/25PAL;525/29.97NTSC;525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30; 1080i 23/24/30;
