Multi Channel Load Cell Amplifier 4-20mA 0-3.3V 0-5V 0-10V Signal Converter

Multi Channel Load Cell Amplifier 4-20mA 0-3.3V 0-5V 0-10V Signal Converter

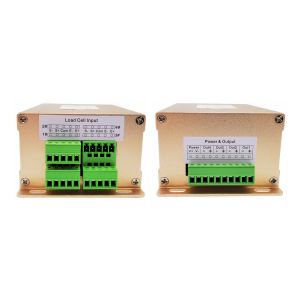

3-Channel Load Cell Signal Conditioner LC3A can work with all our load cell sensors and torque transducers with mV/V configuration to deliver -5-5V / 0-3.3V / 0-5V / 0-10V / 0-20mA / 4-20mA for further data acquisition. Multi-channel load cell signal conditioner LC3A has 3 inputs and 3 outputs,each channel supports Zero adjustment and Gain adjustment for loadcell calibration.Analog signal amplifier LC3A offers a compact signal processing solution for load measurement applications where multiple load cells are involved,especially suitable for signal amplification of 3-axis load cells.

Specifications

Input end of multi channel load cell signal amplifier LC3A

Power with output end of 3-channel load cell signal conditioner LC3A

Dimensions(in mm)

​

Click here to download datasheet
