CE Certificate 12m Length Prefabricated Workshop Buildings

Factory Workshop Warehouse Steel Structure Building Project University Steel Building With CE Certificate

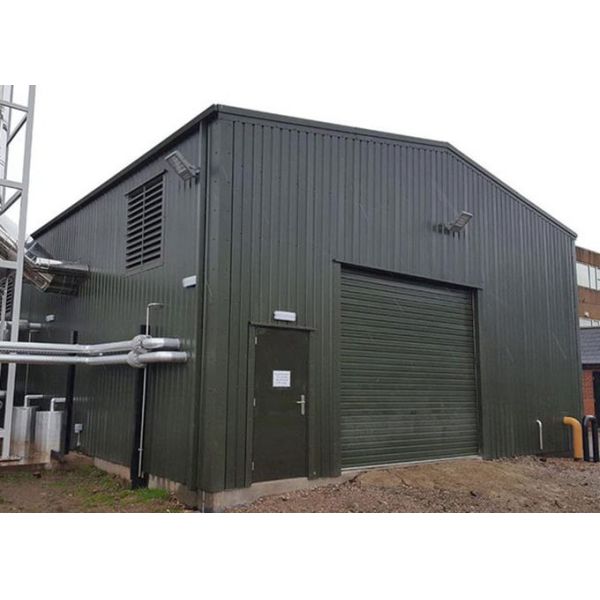

Working has subcontractor, alongside a mechanical and electrical contractor, we helped design a building suitable for housing plant for heating the Erasmus Darwin energy centre at the Clifton campus, Nottingham Trent university.

The building needed designing with a specific layout of plant in mind, the bespoke design engineered to accommodate a complex plant arrangement.

The building required vented sheets to enable air flow through the building, there was also a requirement for louvres for connecting to air intake on the plant machinery.

There was a lot of pipe work protruding through the side cladding which required flashing around, this was carried out when all the pipe work had been positioned.

H profile steel structure, an economic and efficient cross-section material with better arrangement of sectional area and reasonable proportion between strength and weight, is widely used in industrial plants, civil buildings, bridges, electrified brackets of railway and other building projects, due to its advantages in bending ability, simple construction, low cost and light weight.

Installation service
* Layout plan can be designed if needed.
* Installation introduction / CD / installation drawing will be provided if needed.
* Engineers and workers can be sent abroad for guidance and installation.
All stuff have been preinstalled in the container and you just need put it on site, connect to electricity and wate

Packing: Main steel frame without packing load in 40' OT, roof and wall panel load in 40' HQ! Or according to customer's requirement.

Generally configuration for a steel structure building:

Application:	steel warehouse, steel structure building, steel structure warehouse, steel workshop, steel structure workshop,hangar, sport hall, steel hall,shopping mall, cow shed, chicken building etc
Clear span:(width)	6~50m without middle column
Height	2~20m
Length	as your requirement
Material Grade	Q345(S355JR)or Q235(S235JR) steel or as request
Column & Rafter	Welded or Hot rolled H beam
Tie beam	round pipe or square tube or as request
X brace	round steel bar, angle steel or as request
Purlin	C purlin, Z purlin,thickness 2.0mm,2.2mm,2.5mm,3.0mm
sag rod	steel round bar, angle, C purlin etc
Wall & Roof coverage	single corrugated steel sheet (0.12~1.2mm) EPS, Rock wool, glass fiber ,PU core foam sandwich Panel (Thickness:50mm,75mm,100mm,150mm,200mm)
Gate	Electric roller shutter door/Sliding door
Exit Door	Plastic steel/Aluminum alloy swing door/ steel swing door
Window	Plastic steel or Aluminum alloy frame sliding window/ vent/top Hung window
Surface	Shot blasting with anti rust paint rich-zinc epoxy paint etc hot dip galvanize
Certificate	ISO90001,CE EN1090 EXC2 ,IWE etc
Quality Control	The third party ,SGS, QIMA, BV all accept
Crane	5MT, 10MT, 15MT, etc.
Other accessories	gutter, flashing trimming cover, down spout, ventilation fitting, skylight belt, bolt, anchor bolt, self tapping screw etc
Package	main steel frame etc load in 40'OT,roof and wall panel load in 40'HQ!
