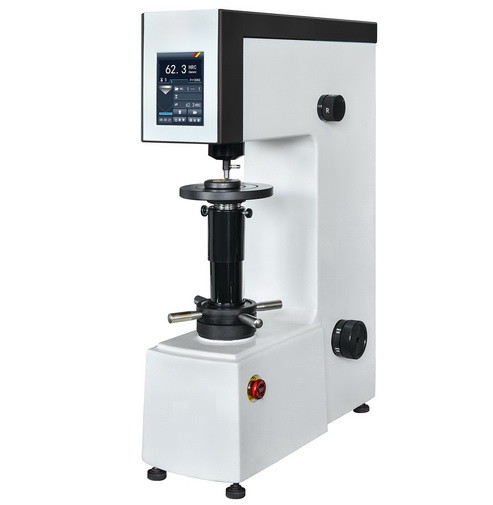

Built-in Printer RS232 Full Rockwell Scales Digital Hardness
Testing Machine with Motorized Loading
Brief Introductions:
iqualitrol iRock-438T Digital Twin Rockwell hardness tester equips
with a newly-designed large LCD screen with good reliability,
excellent operation and easy reading, It can show and set the
scale, test force, indenter, dwell time and hardness conversion.
Technical Specifications:
| Model | iRock-438T |
| Initial Test Force | 3kgf (29.42N), 10kgf (98.07N) |
| Total Test Force | 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N),
60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Hardness Reading | LCD Screen Display |
| Test Scale | HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK,
HRL, HRM, HRP, HRR, HRS, HRV
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T,
HR15W, HR30W, HR45W, HR15X, HR30X, HR45X,
HR15Y, HR30Y, HR45Y |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N,
HR45N, HR15T, HR30T, HR45T, HS, HBW |
| Data Output | Built-in Printer, RS232 Interface |
| Resolution | 0.1HR |
| Dwell Time | 0~60s |
| Vertical Space | 175mm |
| Throat | 165mm |
| Power Supply | AC220V/50Hz/1Ph, AC110V/60Hz/1Ph |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension | 520×215×740mm, Packing Dimension: 650×370×980mm |
| Weight | Net Weight: 80kg, Gross Weight: 100kg |
Packing List:
| Name | Qty | Name | Qty |
| Instrument Main Body | 1 set | Diamond Rockwell Indenter | 1 pc |
| ф1.588mmBall Indenter | 1 pc | Middle Plane Test Table | 1 pc |
| Large Plane Test Table | 1 pc | V-shaped Test Table | 1 pc |
| Hardness Block 60~70 HRC | 1 pc | Hardness Block 20~30 HRC | 1 pc |
| Hardness Block 80~100 HRB | 1 pc | Hardness Block70~85 HR30T | 1 pc |
| Hardness Block 65~80 HR30N | 1 pc | Weight 1, 2, 3, 4, 5 | 5 pcs |
| Power Cable | 1 pc | Fuse 2A | 2 pcs |
| Level | 1 pc | Horizontal Regulating Screw | 4 pcs |
| Screw Driver | 1 pc | Spanner | 1 pc |
| Anti-dust Cover | 1 pc | Usage Instruction Manual | 1 copy |
Main Functions:
1, Available to test all the Rockwell and superficial Rockwell
scales;
2, Support hardness conversion among 17 hardness scales;
3, Test results can be saved and printed out,
4, Automatically calculate of maximum, minimum and average value;
5, RS232 interface for data transferring to computer.
Application Range:
Suitable for quenched steel, tempered steel, annealed steel, cold
and hard casting, malleable cast iron, hard alloy steel, aluminum
alloy, copper alloy, bearing steel etc. Also suitable for surface
quenched steel, surface heat treating and chemical treating
materials, sheet, zinc layers, chrome layers, tin layers etc.
The Rockwell test consists of measuring the additional depth to
which a carbide ball or diamond penetrator is forced by a heavy
(major) load beyond the depth of a previously applied light (minor)
load (SET point).
The minor load is applied first and a SET position is established
on the dial gauge or displacement sensor of the Rockwell tester.
Then the major load is applied. Without moving the piece being
tested, the major load is removed and, with the minor load still
applied, the Rockwell hardness number is automatically indicated on
the dial gauge or digital display.
The diamond penetrator is used for testing materials such as
hardened steels and cemented carbides. The carbide ball
penetrators, available with 1/16 inch, 1/8 inch, 1/4 inch, and 1/2
inch diameter, are used when testing materials such as steel-copper
alloys, aluminum and plastics to name a few.
Rockwell testing falls into two categories: Regular Rockwell
testing (e.g., C and B scales) and Rockwell superficial testing
(e.g., 30 N and 30 T scales).
High Rockwell hardness numbers represent hard materials and low
numbers soft materials.
