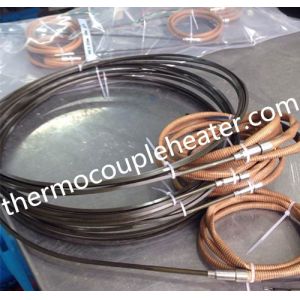

Stainless steel heating coil For Hot Runner System with J Type Sensor 1600W

1600W 230v Coil Heaters For Hot Runner System with J Type Sensor

1. Description:

The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.It's high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can be reuses.

Coil and cable heaters are made by placing a pair of tiny coils or two lines of straight resistance wire inside a very dense MgO medium. This core is then inserted into a stainless steel shell. These high-performance heating cells can acquire temperatures of up to 1500° F.

2. Technical Specifications:

1. Heater Sheath: CrNi Steel

2. High Voltage Stability: 800VAC

3. Insulation Resistance: >= 5M ohm at 500 VDC (Cold)

4. Leakage Current: <= 0.5 mA at 250VAC (Cold)

5. Wattage Tolerance: +/- 2%, +/- 4%, or +/-10%

6. Maximum Voltage: 230V

7. Standard Connection: 72” to 500 deg. F

3. Features:

1. Single allen screw adjustment for tightening and removal

2. Caps and Closure Applications

3. Close matching of Ohms so that multiple axial clamp heaters can be controlled with a single thermocouple

4. Also used in Plastic molding for the cosmetic industry

5. Mini coils in direct contact with nozzle

6. Positive locking positioning

4. Application:

1.Plastic Injection Machine
2.Plastic Extruder Machine

3.Hot Runner & Bushings
4.Tube Extrusion
5.Pipe Forming
6.Hot Runner System

Wuhan Global Metal Engineering Co., Ltd (GME) specialize in the supply of heating elements and  temperature sensors(thermocouples & RTDs) for a vast array of industries since year 1995.

Our main products include but not limited to Coil heater, Cartridge heater, Flexible Tubular heater, Cast-in Heater, Band heater, Thermocouple, RTD’s, Thermocouple extension wire, Thermocouple connection head , Mineral Insulated thermocouple cables , thermowell, etc.

After 20 years growth, we have more than 200 employees in the factory including 50 sophisticated technicians. Our products have been exported to many countries including North America, South America, Europe, Middle East ,South Asia, etc.

More details, you can also visit our website: http://www.gmemetal.com
