175L Stainless Steel Industrial Ultrasonic Parts Cleaner With
Seperate Generator

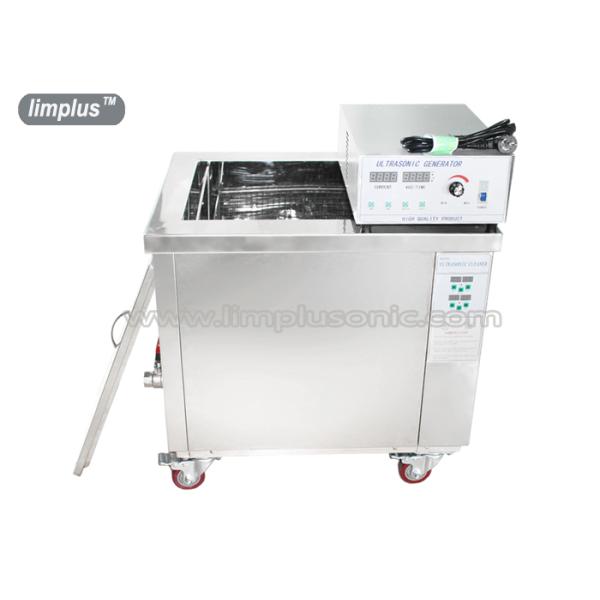

Limplus LS-4801S industrial ultrasonic cleaner
(46Gallon,40kHz,2400W)
This industrial ultrasonic parts cleaner is designed for industrial
cleaning areas, suitable for long time running as long as 24 hours
a day, any sizes and voulumes can be customized.
Advantages:
- Whole machine made of SUS304 stainless steel, 2mm thickness tank
for acid-proof, anti-corrosive.
- Ultrasonic frequency: 28kHz or 40kHz.
- Industrial grade ultrasonic transducer, moisture-proofed PCB.
- Advanced generator, sweep frequency, high quality, better cleaning
effect.
- Ultrasonic power can be adjusted from 40-100%.
- Temperature can be set from 20-95°C.
- Industrial grade for 24 hours continuous working.
- Fully portable, 36L and above volume machines are with wheels,
locking wheels for stability.
- With free lid and stainless steel SUS304 basket.
- Customized according to customer’s request
Specifications:
| Model No. | LS-4801S |
| Tank Dimension(mm) | 700X500X500mm |
| Capacity | 175liter (46gallon) |
| Case material | SUS304 |
| Tank material | SUS304/316L |
| Ultrasonic power | 2400W for tank with ultrasonic |
| ultrasonic frequency | 28kHz (better effect for degrease) |
| Temperature | 20~80C adjust |
| Heating power | 6KW |
| Timer | 1~99hour adjust |
| Voltage of tank | AC220V / AC380 / AC415V, 3phase |
| Voltage of generator | AC110V / AC220V, 1phase |
| Accessories | basket, lid, drainage, |
Remark: Any size is available from us.
According to customers' special requirement, Limplus can make add
optional system, such as oil filteration, rinsing tank, dryer tank
and hydraulic lifiting.
FAQ:
Q.: Tank size can be design as my requirement?
A.: Of course it's available. OEM/ ODM is welcomed.
Q.: How about quality?
A.: Our engineer have more than 10 year experiences in ultrasonic
field.
We check every raw material before stock, and test machine at least
2 days before delivery.
Q.: How about warranty?
A.: 1 year warranty and life-time technical support, any technical
problem, replacement parts will be send after confirm problem.
Other standard sizes for option:
| Limplus Single tank Ultrasonic Cleaners spec. |
| Model | LS-1201S | LS-1801S | LS-2401S | LS-3001S | LS-3601S | LS-4801S | LS-6001S | LS-7201S |
| Tank Dimension(mm) | 400x300x300 | 500x350x350 | 550x400x400 | 600X450X400 | 600X500X450 | 700X500X500 | 800X600X550 | 1000X600X600 |
| Max. Capacity | 36L | 61L | 88L | 96L | 135L | 175L | 264L | 360L |
| Construction Case | SUS304 (Mirror shining image available) |
| Construnction Tank | SUS304 |
| Transducer Number | 12pcs | 18pcs | 24pcs | 30pcs | 36pcs | 48pcs | 60pcs | 72pcs |
| Ultrasonic power(Max.) | 600W | 900W | 1200W | 1500W | 1800W | 2400W | 3000W | 3600W |
| Ultrasonic frequency | 28/40kHz | 28/40kHz | 28/40kHz | 28/40kHz | 28/40kHz | 28/40kHz | 28/40kHz | 28/40kHz |
| Temperature range | 20~95℃ adjustable |
| Heating power | 1.5KW | 3KW | 3KW | 4.5KW | 4.5KW | 6KW | 6KW | 9KW |
| Timer | 0~99min | 0~999min | 0~999min | 0~999min | 0~999min | 0~999min | 0~999min | 0~999min |
| Drain | 3/4" Valve |
| Lid & Basket | Available, material: SUS304 |
| Cleaning Tank voltage | AC110V/AC220V, 1phase | AC220V/AC380V, 3phase |
| Generator | Build-in | External |
| Generator Voltage | AC110V / 220V 1phase |
| Features | Multi-direction castors with brake;
1 year warranty |
