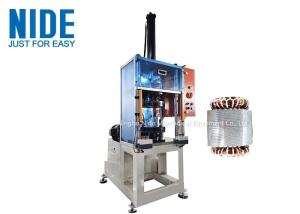

    Automatic coil making machine , Stator Coil Pre - Forming Machine For Induction Motor

    Ask Lasest Price
    Brand Name : Nide
    Model Number : NI-HSX-4A
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100set
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Automatic coil making machine , Stator Coil Pre - Forming Machine For Induction Motor


    Automatic coil making machine , Stator Coil Pre - Forming Machine For Induction Motor


    Quick Detail:


    1. Stator ID min 30mm
    2. Hydraulic system driven.
    3. After first time inserting the winding, use this machine to expand the winding, so that the second time winding inserting will be easier and convenient.

    After coil insertion process, the upper and bottom side of coil will not be the same shape. Therefore, coil forming will be needed before next process. After forming, the coil will be expanding and easy for the next time insertion. Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.


    Technical data

    Stack height20-120mm
    Max stator OD160mm
    Stator ID range≥30mm
    Displacement of cylinder30F
    Power supply380V/50HZ
    Power3KW
    Dimension1300x630x2600mm
    Weight800KG

    Application

    Apply to multi-layer stator winding insertion.


    Competitive advantages
    Variety of application, easy operation.
    We directly supply our machine to many countries.
    We could customize machine for our customer.

    Information needed for formng machine inquiry
    It will be better if customer could send us detailed drawing including below information.
    1. Stator lamination drawing
    2. Stator stack drawing
    3. Stato winding drawing
    4. Required productivity
    5. Other technical requirement
    If possible, it will be better if customer can send us samples.
