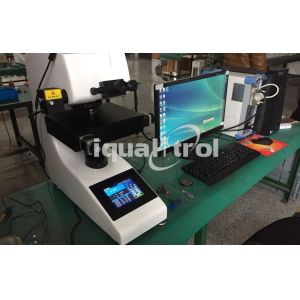

Computerized Automatic Turret Vickers Hardness Tester with Vickers
Measuring System and 1.3Mpx USB Camera
Technical Data Download:
iqualitrol Auto Turret Vickers Hardness Tester HV-10Zpc
Technical Specifications:
| Vickers hardness scale | HV0.3, HV0.5, HV1.0, HV3.0, HV5.0, HV10.0 |
| display | 5-digit hardness value,
4-digit diagonal length (D1, D2),
Hold time, number of tests, average, standard deviation, return |
| Test force | 0.3, 0.5, 1.0, 3.0, 5.0, 10.0kgf |
| Loading control | Automatic (load/hold/uninstall) |
| Test force retention time | 1～99 seconds |
| Optical channel | Dual light channels (eyepieces and CCD camera channels) |
| Optical system | Objectives: 10×, 20×
Eyepiece Magnification: 10×
Total magnification (μm): 100×, 200×
Measuring range : 800μm 400μm
Resolution : 1μm 0.5μm |
| Hardness measurement range | (5-3000)HV |
| XY test stand (optional) | Size (mm): 100×100
Travel range (mm): 25×25
Minimum reading (mm): 0.01 |
| Maximum height of specimen | 165mm |
| Maximum width of specimen | 130mm (distance from the center line of the indenter to the wall) |
| Data output | Reserve built-in mini printer interface, (RS232 serial interface)
optional installation |
| Executive standard | GB/T4340.2 Chinese Standard,
JJG151 Inspection Rule |
| Overall size | 585×200×630mm |
| Weight | 42kg |
Brief Introduction:
iqualitrol automatic turret-type Vickers hardness tester is a
high-tech product of electromechanical and electromechanical
integration. The hardness tester is novel in design, has good
reliability, operability, and repeatability and is an ideal product
for testing Vickers hardness.
The machine uses computer software programming, optical measurement
system. Through the soft key input, the measurement of Vickers and
Knoop hardness can be selected, the intensity of the measuring
light source can be adjusted, the time of charge can be selected,
the test method and test force can be displayed on the LCD display,
and the indentation pair can be measured through the panel input.
The length of the corner line and the screen directly read the
hardness value, making it simple to check the table. Easy to use,
high measurement accuracy
This machine can be equipped with a Vickers measuring system:
continuous test for continuous reading of indentations after
continuous loading, and successive experiments for each loading and
each reading indentation. Using a digital camera with a convenient
ccd camera, video cable, or USB interface, the measurement
indentation can be directly observed on the monitor, and the
accuracy can be measured with the mouse. For setting test
conditions, displaying results, etc. can be operated and displayed
clearly and quickly.
Through the measurement software, it can be easily operated by a
computer. A single point measurement can be used to randomly
measure multiple points and statistical measurement data. The
distance between two or more measurement points can be arbitrarily
set. Permeation layer depth measurement can be measured along X or
Y directions,Statistical measurement data, according to the user
input automatically determine the depth of hardened layer
calculations. Statistics calculations, conversion, display curves,
to determine whether the qualified. Can measure the length of the
part of graphics preservation and printing.
Software Features:
1. Universal USB control, self-provisioned with USB camera,
supports more than 90% USB camera on the market, including chat
camera, no capture card, notebook can also be used to save costs
(also has a capture card version, the price is not the same ,
faster response, more stable, more powerful);
2. Carburized layer depth analysis, detailed report;
3, 10, 20, 40, 3 kinds of magnifications can be switched freely,
and can be separated without affecting each other;
4. Replace the force without recalibration;
5, 14 kinds of E140 standard scale conversion;
6, can achieve automatic measurement;
7, magnifier function, measurement easier;
8, the force value can be freely set, there is no limit of
magnification, magnification software calibration, theoretically
can measure all Vickers including small load;
9, exclusive features: a hardness block to complete the
calibration, eliminating the high price multiplier, more
convenient, easier and more accurate.
Main Functions and Features:
1.The optical system designed by senior optical engineers not only
has clear images, but also can be used as a simple microscope with
adjustable brightness and comfortable vision.
2. Industrial display LCD large-screen display can display year,
month, day, test results and data processing test methods, test
force, measuring indentation length, hardness value, test force
retention time, measurement times and types;
3, Cast aluminum shell molding, structural stability is not
deformed, high-grade automotive paint, scratch resistance, and use
for many years is still bright as new;
4. Our company has its own R&D, production and processing
capabilities. Our machines provide parts replacement and
maintenance upgrades for life.
5. HV-10Z model can be realized: observation - test - completed by
automatic turret measurement position switch;
Application:
1. Iron and steel, non-ferrous metals, metal foils, hard alloys,
metal sheets, microstructures;
2. Carburizing, nitriding and decarburization layers, surface
hardened layer, plating layer, coating,;
3, glass, wafers, ceramic materials, carbonization;
Standard Delivery:
| Host computer | 1 |
| weight | 3 |
| Large and medium "V" test benches | 1 |
| Horizontal adjustment screw | 4 |
| Power cable | 1 |
| 10X digital microscope eyepiece | 1 |
| Vickers hardness block | 2 |
| Spare fuse 2A | 2 |
| Product Certificate | 1 |
| Instruction Manual | 1 |
Note: Optional hardness meter measurement software, eliminate human
error, computer operation, improve efficiency, accuracy is more
accurate.
