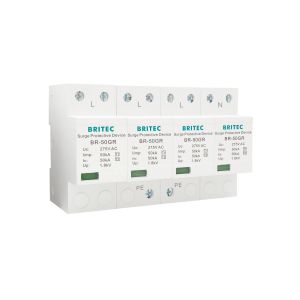

Thermoplastic Spd Surge Protector Features:
• Impact discharge current of per pole reaches 50kA(10/350µs).
• Fast response time less than <100ns.
• Max. backup Fuse: 315A gG.
• Status indicator.
• Fault signal contact.
• 35mm Din rail mountable.
• BR-50GR 4P is suitable for TN-S system.
• It has passed the class I lightning protection test conducted by
national professional testing institutions.
• It is the first-level lightning protection product of ac power
equipment.
Thermoplastic Spd Surge Protector Technology characteristic:
| Specification | BR-50GR 4P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 1 |
| SPD dassification according to IEC61643-11 | Class I |
| Max continuous 0perating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350µs) limp | 50kA |
| Nominal discharge current (8/20µs) In | 50kA |
| Voltage protection level Up | ≤1.8kV |
| Follow current extinguishing capability a.c. lfi | 5kA rms |
| Max. backup fuse | 315A gG |
| Response time tA | ≤100ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm² |
| Cross-section area (Max.) | 35mm² |
| Enclosure material | Thermoplastic UL94-V0 |
Dimension:
Thermoplastic Spd Surge Protector Application:
• For electrical installations.
• Suitable for lightning protection of power supply system in areas
with high risk of lightning strike (LPZ0B or interface between
LPZ0B and LPZ1).
• Can handle lightning currents and protect sensitive electronic
equipment.
• Application-optimised and prewired combined lightning current.
• Particularly useful in a high lightning density area where the
risk of heavy surge current or even direct strike is high (eg:
buildings equipped with lightning rods).
Thermoplastic Spd Surge Protector Advantage:
• High lightning current discharge capacity.
• High quality lightning protection components.
• High reliable quality assurance.
• Temperature control trip device.
• Long service life.
• Failure indication.
• Fast response time.
• Competitively priced against other brands.
• Higher quality than cbi surge arrester and chint surge arrester.
Cara pasang surge arrester:
• During installation, please connect according to the installation
schematic diagram.
• Power must be cut off during installation, live operation is
strictly prohibited, connecting wires must meet the requirements.
• Lightning protection grounding should meet the lightning
protection specifications, the grounding wire should be as short as
possible.
