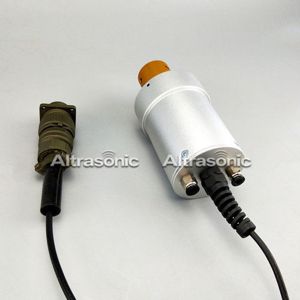

High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing

    Buy cheap High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing from wholesalers

    Buy cheap High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing from wholesalers
    • Buy cheap High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing from wholesalers
    • Buy cheap High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing from wholesalers
    • Buy cheap High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing from wholesalers

    High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing

    Ask Lasest Price
    Brand Name : Altrasonic
    Model Number : HS-D41S30
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T or western Union
    Supply Ability : 1,000 units per month
    Delivery Time : 14 working days after received your payment
    • Product Details
    • Company Profile

    High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing

    High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing


    Specifications:


    Model

    HS-D41S30

    Frequency

    20khz

    Output power

    1000-3000watt

    Joint bolt

    1/2-20UNF

    Ceramic disc Diameter

    50mm

    Quantity of Ceramic discs

    4 pcs

    Capacitance

    11nF

    Amplitude

    20um

    Application

    Welding


    Description:


    The 20Khz high power Ultrasonic Welding Transducer , replacement converter for Dukane 41S30​ is applied to Dukane type ultrasonic welding machine.


    The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.


    Replacement Item:


    Item No

    Connect Screw (Size)

    Ceramic diameter

    (mm)

    Qty of ceramic

    (PC)

    Frequency(khz)

    Resistance(Ω)

    Color of ceramic

    Capacitance

    Input Power

    (W)

    Branson CJ20

    1/2-20UNF

    50

    6

    19.90

    10

    Yellow

    20000

    3300

    Branson 502

    1/2-20UNF

    50

    6

    19.90

    10

    Yellow

    20000

    3300

    Branson 402

    M8*1.25

    25

    4

    39.60

    10

    Yellow

    4200

    800

    Branson 4TH

    M8*1.25

    25

    4

    39.90

    10

    Yellow

    4200

    800

    Branson 902

    1/2-20UNF

    40

    4

    19.85

    10

    Yellow

    8000

    1100

    Branson 922J

    1/2-20UNF

    50

    6

    19.90

    10

    Yellow

    20000

    2200

    Dukane 40K

    M8*1.25

    35

    2

    39.80

    5

    Gray

    3000

    800

    Dukane 20K

    1/2-20UNF

    50

    2

    19.50

    10

    Yellow

    11000

    2000

    Dukane 110-3122

    1/2-20UNF

    50

    4

    19.50

    10

    Yellow

    11000

    2000

    Dukane 110-3168

    1/2-20UNF

    45

    2

    19.50

    10

    Yellow

    4000

    800

    Rinco 35K

    M8*1.25

    25

    2

    34.80

    50

    Yellow

    2000

    900

    Rinco 20K

    M16*2

    50

    2

    19.90

    50

    Yellow

    5000

    3000

    Telsonic 35K

    M8*1.25

    25

    4

    35.00

    5

    Yellow

    4000

    1200

    Telsonic 20K

    1/2-20UNF

    50

    4

    20.00

    3

    Yellow

    10000

    2500


    Applied Range:


    Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,

    which can be widely used to do welding in various kinds of industries.

    Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric

    clothing,

    packing, office supplies, toys, etc.
    Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.

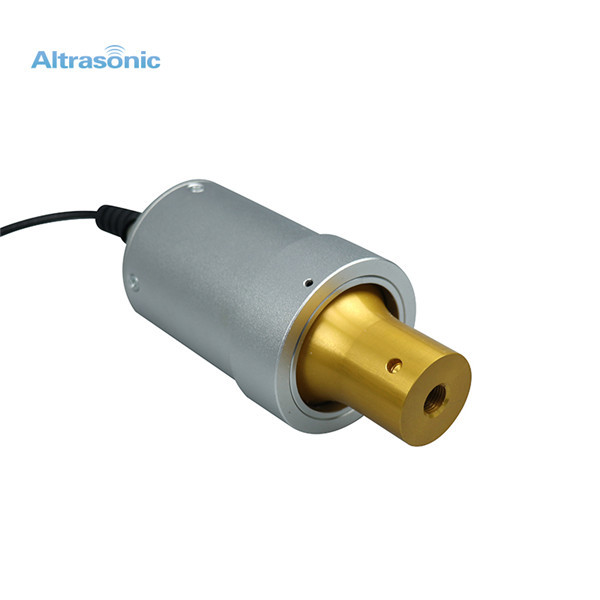

    Quality High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing for sale
