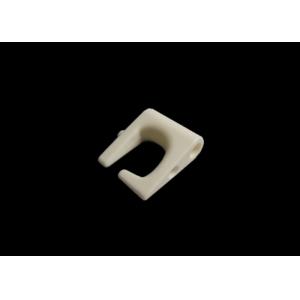

    Low Friction Textile Aluminum Oxide Ceramic Yarn Guide Customized Made

    Ask Lasest Price
    Brand Name : KAMTAI
    Model Number : KTJC14-20
    Certification : ISO 9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability : 20000PCS/ MONTH
    Delivery Time : 25 DAYS AFTER PAYMENT
    • Product Details
    • Company Profile

    Low Friction Textile Aluminum Oxide Ceramic Yarn Guide Customized Made

    Low Friction Textile Aluminum Oxide Ceramic Yarn Guide Customized Made


    1). Excellent insulation, security, long working life.

    2). High temperature resistance

    3). Resistance to electric breakdown

    4). Stand wear and tear

    5). High strength

    6). Corrosion resistance

    7). Good compactness

    8). HIgh hardness


    The ceramict eyelets (ceramic ring) is the most commonly used component for the wire passing, and it is used in the wire passing position of the coil winding machine and the textile machinery. Normally it is used for less demanding occasions. The shape, finish and the hardness of materials must be improved in order to reduce the friction because of the wire sliding in the surface of the ceramic rings. According to the requirements, the Polish degree of porcelain eye can be regarded as roughness polishing, precision polishing and ultra-precision polishing.


    1. The inside surface Polish degree: Ra0.2~0.8.
    2. The material: 99% AI2O3 with density of 3.85.
    3. The hardness: HRa88.


    PropertiesUnitSteatite ceramic95% Al2O399% Al2O3Zirconia Ceramic
    densityg/cm³2.73.63.85.6
    Flexural strengthMpa145300300354
    HardnessGpa5.7710.712.3
    Elastic modulusGpa120275320205
    Poissons ratio-0.210.220.220.30
    Linear expansion coefficientx 10-6/℃7.97.17.89
    Thermal conductivityw/(m.k)2.520252.5
    Specific Heat*10-3J/(kg*K)0.750.780.780.4

    Size can be customized
