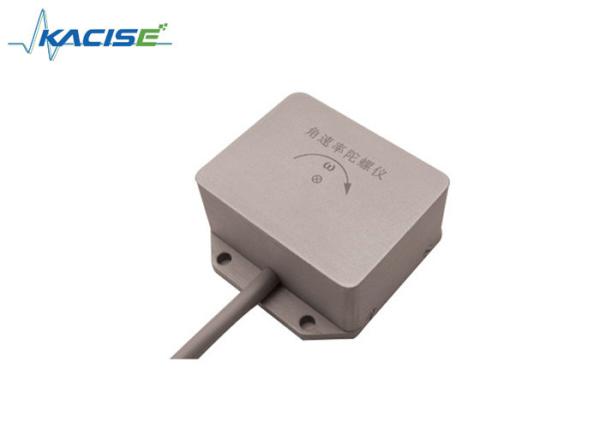

    200Hz Single Axis Gyro Sensor , Gyroscope Sensor Module High Bias Stability

    Ask Lasest Price
    Brand Name : KACISE
    Model Number : K-ARS-1500A/1500D
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 1000 Piece/Pieces per Week negotiable
    Delivery Time : 5 working days after payment
    Certification : CE
    • Product Details
    • Company Profile

    200Hz Single Axis Gyro Sensor , Gyroscope Sensor Module High Bias Stability

    200Hz Single Axis Gyro Sensor , Gyroscope Sensor Module High Bias Stability


    Feature

    • ☆ Whole temperature range compensation and Nonlinear correction

      ☆ High Bias stability

      ☆ Digital RS422 output

      ☆ Data Fusion and Noise compensation


    Application fields

    ☆ High-speed rotating smart shells
    ☆ Multiple remote extended-range rockets



    Technical Specifications

    TypeK-ARS-1500AK-ARS-1500D
    Electric character
    Input voltage6±0.1VDC
    Input current≤150mA
    Output ModeRS422
    Baud Rate115200bps
    Output Data Rate200Hz
    Output Data format16-bit twos complement
    Performance index
    Axial directionZ
    Range±100゜/s±250゜/s
    Broadband≥60 Hz
    Resolution (°/s)≤0.04/s
    Nonlinear (%FS)≤0.3 %Fs
    Bias±0.2゜/s
    Bias stability≤0.015゜/s≤0.008゜/s
    Start-up time (ms)≤0.1s
    Environmental characteristics
    Temperature (°C)-40℃~+70℃
    Storage Temperature-40℃~+125℃
    Resistant to shock2000g
    Physical Characteristics
    Weight (g)45g
    Dimensions45×24×21mm47.5×39.6×29mm

    Dimension (unit: mm)



    Application

    1). Angle measuring instruments,
    2). Level measurement platform,
    3). Platform level control,
    4). Measuring instruments and heavy mechanical stability,
    5). Acceleration and motion measurement,
    6). Automotive control, inertial navigation,
    7). Seismic monitoring and other measurement systems
