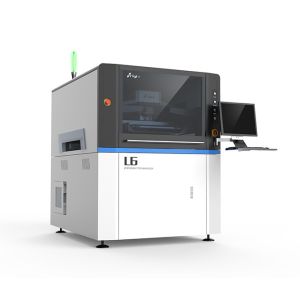

Auto L6 PCB Solder Printing Machine With Unique Belt Transmission System

Advantage

1, Arch bridge type suspending direct-connected scraper.

2, Print head with the programmable and suspending self-adjusting stepper motor drive.

3, Four wheel positioning slide type with bilateral double sliders ensures the moving accuracy and stability when scraper is running back and forth.

4, Unique belt transmission system avoids being stuck or fall-off of PCB.

5, Programmable motor controls transport speed and puts PCB in the precise position.

6, The unit to clean is separated from CCD camera, which can minimize the load of motor and impulse, improve the positioning precision and speed and extend the service life.

7, With servo motor and lead screw, the direct connection UVW platform is featured with high precision, high rigidity and compact structure.

Specifications

Screen Frames Min Size 650X400mm Max Size 850X750mm Thickness 25~40mm PCB Min Size 50X50mm PCB Max Size 650X340mm PCB Thickness 0.4~6mm PCB Warpage ＜1% Transport Height 900±40mm Transport Direction Left-Right;Right-Left;Left-Left;Right-Right Transport Speed Max 1500mm/S Programmable Board Location Support System Magnetic Pin/Up-down table adjusted/supportblock by hand Clamping System side clamping,vacuum nozzle Print head Two independent motorised printheads Squeegee Speed 6~200mm/sec Squeegee Pressure 0~15Kg Squeegee Angle 60°/55°/45° Squeegee Type Stainless steel(Standard), plastic Stencil Separation Speed 0.1~20mm/sec Programmable Cleaning System Dry,Wet,Vacuum (Programmable) Table Adjustment ranges X:±10mm;Y:±10mm;θ:±2° CCD FOV 8x6 mm Solder Paste lnspection 2Dlnspection ( Standard ) 　 Repeat Position Accuracy ±0.01mm Printing Accuracy ±0.025mm Cycle Time <10s (Exclude Printing & Cleaning) Product Changeover <5Min Air Required 4.5~6Kg/cm2 Power Input AC:220±10%,50/60HZ 1Φ 3KW Control Method PC Control Machine Dimensions 1330(L)X1355(W)X1500(H)mm Machine Weight Approx:1100Kg
