water transfer utility micro water pump low pressure suction water
Product Description
Reliability of micro water pump low pressure
It is decided by the consequences’ severity of micro pump failure ,
according to their own requirements. The average failure-free
continuous running time of high quality products is more than 1000
hours, and some of them are thousands of hours. It is especially
important to note that this parameter is measured under full load
and uninterrupted operation, and is the worst condition. If the
actual use is not full load or continuous operation, the life span
will be longer. About how longer it can run, it will depend on the
pump working condition. The performance is a test of the
manufacturer's technical strength. If just from the appearance of
the product, it can be seen, such as the use of special motors
rather than ordinary low-priced motor, heavier weight under same
size. In addition,according to the price of the product, it may
also know a little.
micro water pump low pressure's parameter and features
| Model | S1312-201-7500 | | Size(mm) | 46*18*32 | | Voltage(V/DC) | 3V/6V/9V/12V | | No-load current(mA) | 70 | | Load current(mA) | 120 | | Free Flow(L/M) | 0.22 | | Lift(m) | 2 | | Weight | 32 |
|
micro water pump low pressure's demension
Unlabeled tolerance is ± 0.1mm.
Pump Size:46*18*32mm
Pump Weight:32g;
Outlet:OD 4.3mm, silicone hose suggestion:ID 3mm
Materials:pump body: PC/PPS, diaphragm: EPDM
Because we use imported ball bearing,the pump’s performance is
stable and high.
The membrane is made by EPDM and pump's body is made by special
PC/PPS which make pump well endurance and strong chemical
resistance.
micro water pump low pressure's application
industrial pressure and vacuum applications
Portable analytical instruments
Medical diagnostic equipment
Air quality sampling monitors
Respiration monitors
Gas or odor leak detectors
micro water pump low pressure's packing and shipping
We can ship pumps to you by sea, by air or by express.
By sea: cheap but long
By air: quick but a a little expensive
By express: door to door, 3-5days to your country by
DHL/UPS/FEDEX/TNT and others.
The fastest, but most expensive.
You can choose according to your needs

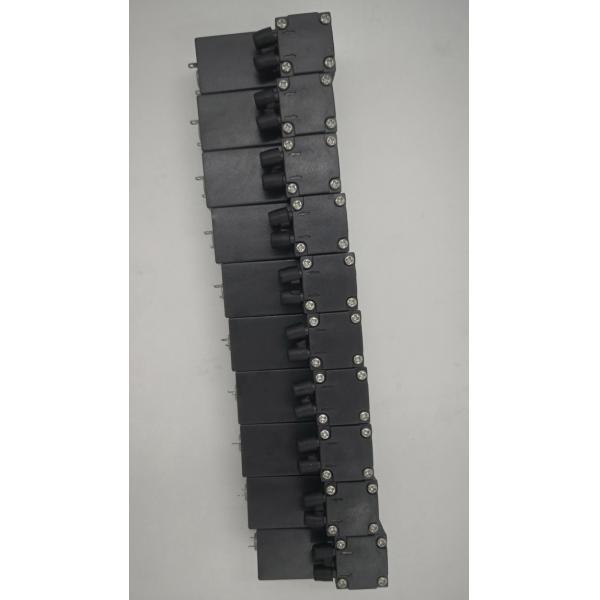

micro water pump low pressure's picture
User Instructions
1. will not guarantee the products if the application of our
products are exceeded the limitation which is specified on this
specification.
2. In case of changes of the specification specified on this
document. A written notice is requested in advance.
3. there is any data or related documentation different from this
data sheet.This data sheet is the principle reference.
4. Please do not use it in the environment of corrosive gas or
liquid or any detrimental gas. 5.While the motor is in
operation,please do not lock the motor intentionally for a long
periods,since the continuous stoppage will result in overheat and
thus burnt out the motor.
RFQ
Q1: Can I have a sample order for it?
A: Warmly welcome of sample order to test and check quality. Mixed
samples are acceptable.
Q2: What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks, if
bulk qty need about 20-25workdays.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q4: How to proceed an order?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements /our recommend
model with suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q5: What's your payment terms?
A: T/T & L/C, small amount accept paypal. Big amount ok for 30%
down payment & balance against copy bill of loading.For more need,
please just contact us and we will reply within 24hours on working
days.
Q6. Is it OK to print my logo on this product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 6-12 months warranty to our products & 1% wear out
parts for after service.
Q8: What’s your main marker?
A: North America, Korea & European
Q9: Do you have ability to do ODM service?
A1: Warmly welcome your ODM requirement based on our production
line and our R&D team with more than 16 years experience on
pump& motors.
A2: ODM service based on offered sample. B:Oo modify & creative new
function based on our product series.
Q10. Do you have any MOQ limit for led light order?
A. No MOQ, 1pc for sample checking is available.
