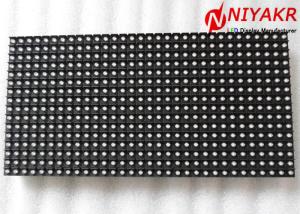

SMD RGB Indoor Full Color P2.5 LED Module Panel 160000 Dots/m2 65X32 Pixels

    Buy cheap SMD RGB Indoor Full Color P2.5 LED Module Panel 160000 Dots/m2 65X32 Pixels from wholesalers

    Buy cheap SMD RGB Indoor Full Color P2.5 LED Module Panel 160000 Dots/m2 65X32 Pixels from wholesalers
    • Buy cheap SMD RGB Indoor Full Color P2.5 LED Module Panel 160000 Dots/m2 65X32 Pixels from wholesalers
    • Buy cheap SMD RGB Indoor Full Color P2.5 LED Module Panel 160000 Dots/m2 65X32 Pixels from wholesalers

    SMD RGB Indoor Full Color P2.5 LED Module Panel 160000 Dots/m2 65X32 Pixels

    Ask Lasest Price
    Brand Name : NIYAKR
    Model Number : P2.5 6432
    Certification : CE,ROHS,EMC,UL,ISO
    Price : USD
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100,000 PCS Per Month
    Delivery Time : 1-8 Working Days
    • Product Details
    • Company Profile

    SMD RGB Indoor Full Color P2.5 LED Module Panel 160000 Dots/m2 65X32 Pixels

    SMD RGB Indoor Full Color P2.5 LED Module Panel 160000 Dots/m2 65X32 Pixels


    Pixel Pitch: P2.5

    Module Size:160*80mm (6.30*3.15)

    Module Resolution: 64*32 Pixels


    Features:

    1. Small pixel pitch ensure good vision effect for closed view distance, friednly to eyes,

    2. Black led lamp body, high contrast rate, high definition up 1080P

    3. Wide view angle with 160° for horizontal and 140° for vertical, no strobe, no image distortion and color cast from different angle

    4. SMD LED encapsulated technology make slim thickness and good heat dissipation, energy-saving

    5. Dot to dot maintain, easy and quick maintenance, save maintenance cost

    6. Soft mask cover keep the lamps from impact, good protection

    7. Can be assembled with different size's cabinets or on rackes with magnet

    8. Widely used for led TV Screen, video wall, sign board, studio, broadcasting, meeting room etc.


    Specification:


    Item No.P2.5
    ClassificationFull color
    Pixel pitch2.5mm
    Size of module (mm*mm)160*80
    Pixel density160,000 dots/m2
    Pixel composition1R1G1B
    LED encapsulationSMD
    Resolution of module64*32
    Best viewing distance1m
    Best viewing angle (Horizontal/Vertical)140°/140°
    Max power consumption1300 W/m2
    AVG power consumption500~600 W/m2
    Size of standard cabinet(mm)480*480
    Resolution of standard cabinet192*192
    Weight of standard cabinet8kg
    Driving method1/16 Scan
    Frame frequency60Hz/s
    Refresh rate≥1500HZ
    White balance brightness≥1500cd/m2
    Working /Storage environment temperatureWorking: —20°C~55°C Storage: —40°C~65°C
    Operating ambient humidityWorking: 10%--95% HR Storage: 10%--95% HR
    IP gradeIP20~IP54
    Working voltageAC 220±10% or 110±10%
    Grey scale16 bits per color
    Brightness adjustment256 levels of each color (RGB) can be adjusted manually
    Signal inputRF, S-Video, RGB, RGBHV, YUV, YC.ect
    Control systemPCTV nonlinear editing card+ DVI display card+ main controller card+ optical fibre transmission ( optional)
    MTBF≥10000 hours
    Life span≥100000 hours
    Malfunction dot rateless than0.0001
    Transmission distanceLAN cable less than100m; Optic fiber transmission: MMF less than 500m, SMF less than 20km
    Refresh rate can be higher by using more receivers: other parameter can be changed according to different application.
