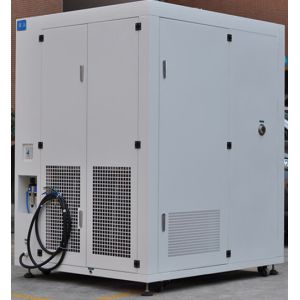

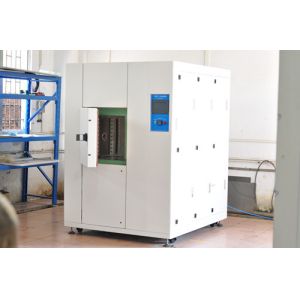

Programmable Cold Hot Temperature Cycling Chamber
Thermal Shock Test Equipment
Brief Introduction:
Thermal Shock Test Chamber is used to test the bearing extent of
the material structures and composite material in an instant and
continuous high temperature and extremely low temperature
environment, which is in the shortest time to test its thermal
expansion and contraction caused by chemical change or physical
harm.
QTS3 series air-to-air thermal shock chambers circulate cold, hot,
or ambient air as needed. The conditioned air is pre-cooled or
pre-heated beyond the set point, allowing quicker recovery of the
desired condition after transfer.
The equipment is widely used in metal, plastic, rubber, electronics
and other materials and it can be used as an important reference
for improving product quality. It meets the standard of MTL, IEC,
JIS, GJB…
QTS3 Features:
1. Automatically setting of pro-cooled and pre-heated air.
2. Testing samples don’t move, cable port is available for power on
testing.
3. Powerful interactive touch screen controller, easy operation and
setting
4. High accurate temperature recovery with PID auto tuning
5. Auto defrost function
6. System alarms are stored in memory for historical review
7. Operation data can be downloaded as needed,with RS-232C
communication port for connecting PC to control, record and save
test report.
8. Cold and hot shock temperature recover within 5 minutes, which
complies with MTL, IEC, JIS, GJB and other international standards.
Testing Standards:
MIL-STD-883E Method 1011.9 Thermal Shock
MIL-STD-202G Method 107G thermal Shock
JIS C 0025 Change of temperature
IEC 61300-2-47 Tests-Thermal Shocks
JESD22-A104C Temperature cycling
GB/T 2423.22-2012 Test N: Change of temperature
GB/T 2431.1-2001 Testing A: Low temperature testing method
GB/T 2431.2-2001 Testing B: High temperature testing method
GB 11158 High and low temperature test term
Model Selection:
| Model | Interior dimensions (W ×H × D) | Interior Volume | Exterior dimensions (W ×H × D) | Specimen loading weight |
| QT3-56A/B/C | 400 ×350× 400mm 15.7”×13.8”×15.7” | 56L | 1450× 1950 ×1600mm 57.1” ×76.8” ×63.0” | 2.5Kg |
| QT3-80A/B/C | 500 ×400× 400mm 19.7”×15.7”×15.7” | 80L | 1550× 2050 ×1600mm 61.0” ×80.7” ×63.0” | 5.0Kg |
| QT3-150A/B/C | 600 ×500× 500mm 23.6”×19.7”×19.7” | 150L | 1650× 2150 ×1800mm 64.9” ×84.7” ×70.9” | 7.5Kg |
| QT3-225A/B/C | 750 ×600× 500mm 29.5”×23.6”×19.7” | 225L | 1850× 2250 ×1800mm 72.8” ×88.6” ×70.9” | 7.5Kg |
Technical Specifications:
| Structure | Pre-cooling Zone, Pre-heating Zone, Testing Zone (Selectable 2-Zone
or 3-Zone Test for stationary object test) |
| Damper Device | Forced Air Damper |
| Interior Material | SUS#304 Stainless Steel |
| Exterior Material | stainless steel with environmentally baking paint |
| Testing Shelves | Stainless Steel Plate |
| Refrigeration | Cascade Refrigeration System |
| Cooling Method | Water/Air Cooling |
| Ambient Temperature | 5℃～30℃ |
| Pre-heating Temperature | 80℃～200℃ |
| Pre-cooling Temperature | －40℃ (－60℃/－75℃)～－10℃ |
| High Temp. Shocking | 60℃～150℃ |
| Low Temp. Shocking | A=―35℃～0℃ B=―55℃～10℃ C=―65℃～10℃ |
| Temp. Uniformity | Less than ±2℃ |
| Transition time | <10 seconds |
| High Temp. Recovery time | RT℃～150℃/5min |
| Low Temp. Recovery time | RT℃～－75℃/5min |
| Pre-heating Time | 40min (30min for 56L) |
| Pre-cooling Time | 80min (60min for 56L) |
| Controller | Powerful interactive LCD touch screen controller |
| Setting Range | Temperature: －200℃～300℃ Time: 0H1m～9999H59m Cycle: 1～9999cycle |
| Resolution | Temperature: 0.01℃ Time: 1min |
| Control Method | PID+SSR |
| Power supply | AC380V/50Hz/3P |
| Accessories | Viewing Window, Cable Port, Chamber Illumination, LCD touch screen controller, Power cable |
| Security System | Overheat Protector, Compressor overload protector, Controller
protector, Motor overload protector |
| Notes | 1. Ambient temperature of +23℃ and a cooling water temperature of
+25℃ 2. During pre-heating, prevention for temperature heat-up may be
worked 3. Performance shown above conforms to IEC61300-2-47 4. Temperature heat-up/pull-down time is applicable only during
independent chamber operation |
