    Environmental Test Chamber Stress Screening Compound Altitude

    Ask Lasest Price
    Brand Name : SANWOOD
    Model Number : SM-VTH
    Certification : CE or ISO
    Price : negotiatory
    Supply Ability : 60/ month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    Environmental Test Chamber Stress Screening Compound Altitude


    Environmental Stress Screening compound altitude, temperature, humidity chamber


    Product Description:



    Altitude Test Chamber Specification:


    ModelSM-VTH-250-CCSM-VTH-500-CCSM-VTH-1000-CCSM-VTH-2000-CC
    Temperature

    Temperature

    control range

    -70℃~180℃ (A:0℃~180℃;B:-20℃~180℃;C:-40℃~180℃;D:-70℃~180℃)

    Temperature

    fluctuation

    ±0.5℃
    Cooling rate180.0℃~-70.0℃ Within 120mins (1.0~2.0℃/min)
    Heating rate-70.0℃~180.0℃ Within 100mins (2.0~3.0℃/min)

    Temperature

    uniformity

    ±1.5℃ (-40.0℃~100.0℃)
    ±2.0℃ (100.1℃~180.0℃or-40.0℃~-70.0℃)
    PressurePressure rangeNormal pressure~0.5kpa(500pa)
    Pressure error±2kpa(>40kpa),±5%(2kpa~40kpa),±0.1kpa(<2kpa)

    Depressurization

    time

    Normal pressure~1kpa,about 30 mins;

    Pressure

    recovery time

    <10kpa/min
    Humidity

    Humidity

    control range

    20.0%RH~98.0%RH(work under atmospheric humidity)
    Humidity fluctuation±2.0% RH
    Humidity uniformity±5.0%RH
    Material /
    components
    Internal materialAdopt 2mm thickness stainless steel plate (SUS304)
    External materialAdopt 10mm thickness cold rolled steel plate fully welded / powder sprayed

    Heat insulating

    material

    100mm thickness polyurethane plate+10mm thickness mineral wool
    FanCentrifugal blower
    CompressorFrance Tecumseh, Germany Bock, Germany Bitzer
    CondenserAir cooling, water cooling
    RefrigerantR404A,R23,R508
    EvaporatorFin - and - Tube Heat Exchanger
    HeaterNickel chromium alloy heating wire
    HumidifierSteam humidifier
    Size

    Inner size(mm)

    W*H*D

    550*600*700700*800*9001000*1000*10001400*1200*1200

    Outer size(mm)

    W*H*D

    2000*1060*19002500*1260*20502720*1460*21303150*1650*2050
    Volume(L)250L500L1000L2000L
    Operating ambient temperature+5 ~ 35℃
    Power supply380V AC 50/60Hz

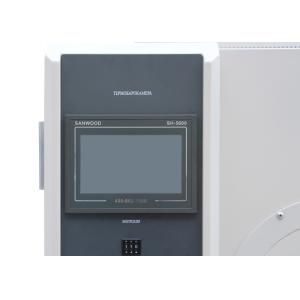

    ControllerSANWOOD SH5600:Equipped with RS232 port;(7.0 inch controller)USB data export )

    RELATED PRODUCTS

    1. Temperature & humidity test chamber ( Temperature range: -75℃~+180℃,Humidity range: 10%~98%)

    2. High low temperature test chamber( Temperature range: -75℃~+180℃)

    3. UV weathering test chamber

    4. Xenon lamp accelerated aging test chamber

    5. Ozone accelerated aging test chamber

    6. Thermal shock test chamber( Two-zone type and three-zone type)

    7. ESS test chamber (Ramp rate: 5℃/min, 10℃/min, 15℃/min)

    8. Salt spray corrosion test chamber

    9. Dust test chamber

    10. Rain test chamber

    11. Temperature & altitude chamber

    12. Vibration test chamber


    Product Catalog:


    Walk-in Type Battery Explosion-proof High and Low ...

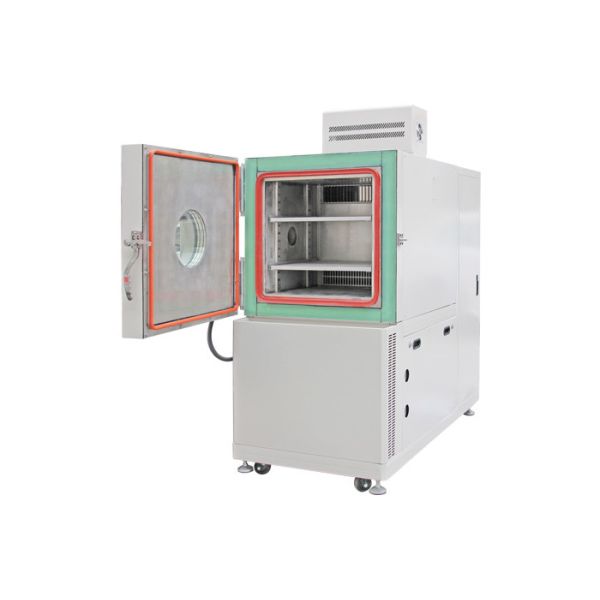

    Quality Environmental Test Chamber Stress Screening Compound Altitude for sale
