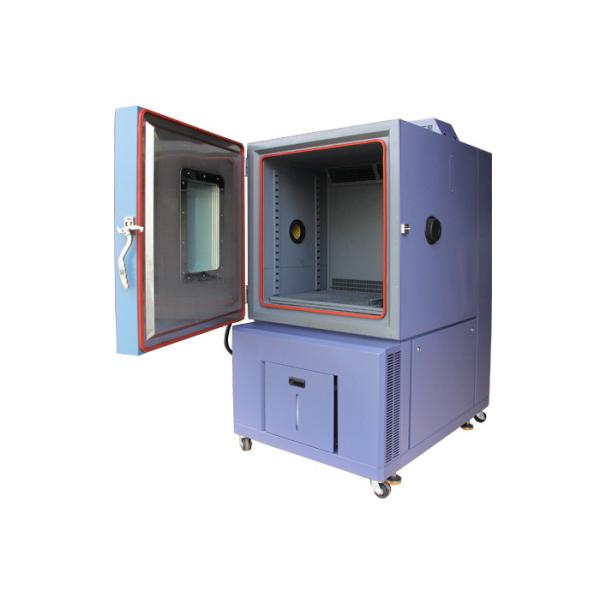

    User Friendly Climatic Chamber With Programmable Controller Remote Control to PC Applied For Electronic Industry

    Ask Lasest Price
    Brand Name : SANWOOD
    Model Number : SMC-Sereis
    Certification : CE AND ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 60 set per month
    Delivery Time : 4-5 weeks
    • Product Details
    • Company Profile

    User Friendly Climatic Chamber With Programmable Controller Remote Control to PC Applied For Electronic Industry


    Environmental Chamber Constant Temperature And Humidity Test Chamber


    The main purpose:


    Research and development, quality control engineering test specifications for the defense industry,


    aerospace space, auto parts, electronic components, plastics industry, food industry,


    pharmaceutical industry, semiconductor computer peripheral components and related products.


    Product Overview:



    The main function:


    Temperature and humidity controller can be set to program control, jog control, LCD touch screen


    for the Chinese and English input liquid display, humidity and humidity control are self-tuning


    function. With over-temperature protection. Overload protection. As well as manual temperature


    to the time function, and alarm indicator light instructions.


    Product Features:


    Energy-saving Design: Double-compressor



    Sample Surface temperature display.


    Circuit System: UK Standard


    Controller: Programmble controller with touch screen, Easy operation and user friendly.


    Standard Models with Technical specification:

    ModelSMC-80-CCSMC-150-CCSMC-225-CCSMC-408-CCSMC-800-CCSMC-1000-CCSMC-1500-CC
    Temperaturetemperature range-70℃~180℃(A:0℃~180℃;B:-20℃~180℃;C:-40℃~180℃;D:-70℃~180℃)
    temperature fluctuation±0.5℃
    cooling rate180.0℃~-70.0℃ Within about 100 minutes1.0~3.0℃/min
    heating rate-70.0℃~180.0℃ Within about 60 minutes 3.0~5.0℃/min
    temperature uniformity±1.5℃ (-40.0℃~100.0℃)
    ±2.0℃ (100.1℃~180.0℃or-40.0℃~-70.0℃)
    Humidityhumidity range10.0%RH~98.0%RH(60℃ above corresponds to 11%RH)
    humidity fluctuation±1.0% RH
    humidity uniformity±2.0%RH
    MaterialInternal materialSUS304 stainless steel(1.2mm)
    External materialcold-rolled plate(1.2mm),powder coating
    heat insulationpolyurethane foam(100mm)+glass wool(10mm)
    fanCentrifugal fan(Impeller Fan)
    refrigeration compressorhermetic compressor(Tecumseh)
    cooling wayair cooling or water cooling
    refrigerantR404A,R23,R508
    evaporatorfinned-tube exchanger
    heaternickel chrome strip heater
    humidifierSteam Humidifier
    SizeInterior size(mm)
    W*H*D

    400*500

    *400

    500*600

    *500

    500*750

    *600

    800*850

    *600

    1000*1000

    *800

    1000*1000

    *1000

    1200*1000

    *1250

    Outer size(mm)
    W*H*D

    700*1630

    *1180

    700*1670

    *1275

    700*1880

    *1290

    1000*1950

    *1400

    1200*2050

    *1590

    1200*2050

    *1780

    1400*2050

    *2030

    volume(L)80L150L225L408L800L1000L1500L
    weight(kg)280380450620680840955
    Working Temperature+5 ~ 35℃
    Power supply220V AC 50/60Hz 22A220V AC 50/60Hz 31A220V AC 50/60Hz 33A380V AC 50/60Hz 17A380V AC 50/60Hz 25A380V AC 50/60Hz 27A380V AC 50/60Hz 50A
    ControllerStandard: South Korea TEMI-1500
    Optional: South Korea TEMI-2500,South Korea TEMI-2700

    Product Catalog:

    Temperature and Humidity Test Chamber .pdf
