1*16 SC Fiber Optic Splitter Box for CCTV FTTH GPON Pole Wall Mount PC

1*16 SC Fiber Optic Splitter Box for CCTV FTTH GPON Pole Wall Mount PC

The equipment is used as a termination point for the feeder cable to connect with 16pcs drop cable in FTTH network system, it mix fiber splicing, splitting, and distribution in a box, and also provides solid protection and management for the FTTx network building.

Features

1. Total enclosed structure with key and buckles
2. High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging
3. Outdoor wall mount, pole mount or aerial mount, protection level up to IP65
4. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
5. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, easy maintenance.
6. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

Specification

Product Details

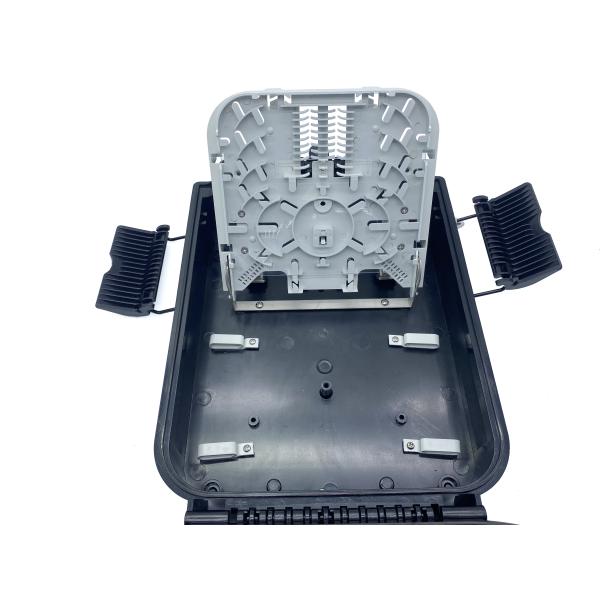

This box can load LGX splitter module 1*2 1*4 1*8 1*16, SC connectors G657A1 LSZH hytrel white loose tube.

The main body is ABS PC material, the rotate plate white color is ABS material. Metal part is stainless steel.

The white rorate plate back side is for fiber optic pigtails routing and storage, also 16cores fiber fusion splice slots.

There is big enough space for fast connectors with drop cable, no matter 50mm ,52mm, 55mm, or 60mm length, all can use.

The cable exit is rubber kits with slots for each flat drop cable, the size is 2x3mm flat, which is also waterproof performance.

The metal holder for the plate is stainless steel and fix on bottom with screws. There are 4sets of cable fixture kits for cable enter, humanity deisgn for ftth network.
