    Lightweight Counterbalance Electric Stacker 1000kg With Explosion Proof Valve

    Ask Lasest Price
    Brand Name : REACH
    Model Number : QDA10E
    Certification : CE, TUV
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 200 sets per month
    Delivery Time : 25 - 30 days
    • Product Details
    • Company Profile

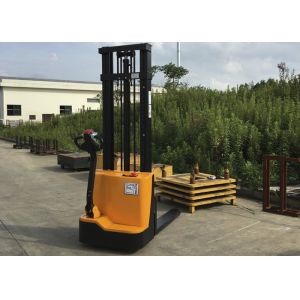

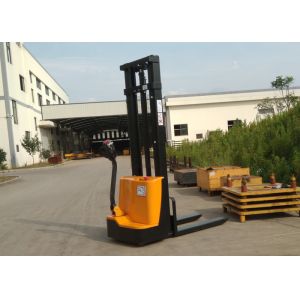

    Lightweight Counterbalance Electric Stacker 1000kg With Explosion Proof Valve

    Light weight electric stacker warehouse forklift trucks with 1000kg capacity


    Quick Details:

    Model: Double pallet warehouse forklift trucks QDA10E
    ​​​Capacity: 1000kg
    Lift height: 1600/2500/3000/3300mm
    Fork dimensions: 60/142/1070mm
    Turning radius: 1390mm

    ​Max. gradient, load/unload: 3/10%

    ​Drive motor power: 0.75kw

    ​Lift motor power: 2kw
    Battery: 24V75Ah



    Advantages:


    Structural

    • Electric stacker warehouse forklift trucks with 1000kg capacity.

    • ​C-type steel, Alloy steel ​rigidity about 30% higher than plain carbon steel.

    • chassis safe and stable.

    • High energy sealed battery, maintemance free, no need to add electrolyte or water.

    • Stepless speed change, meet the needs of different drivers.

    • The line layout is reasonable and convenient to maintain.

    • Explosion-proof valve.

    • Imported controller - CURTIS.

    • Side operating handle.

    • Emergency reverse and power-off disconnect switch.



    SPECIFICATIONS
    ModelQDA10E
    Driving typeElectric
    OperatingWalking
    Rated capacitykg1000
    Load center distancemm500
    Max. lifting heightmm1600/2500/3000/3300
    Lowered mast heightmm2080/1830/2080/2230
    Overall heightmm2080/2950/3450/3600
    Min. fork heightmm85
    Overall lengthmm1750
    Overall widthmm790
    Forks sizemm60/142/1070
    Forks widthmm570/660
    Ground clearancemm58
    Turning radiusmm1390
    Travel speed, laden/unladenkm/h3.5/4
    Lift speed, laden/unladenm/s0.1/0.2
    Lowering speed, laden/unladenm/s0.12/0.1
    Max. Gradient, load/unload%3/10
    Travel brakeelectric regenerative braking
    Driving motor powerkw0.75
    Lifting motor powerkw2
    BatteryV/Ah24/75
    Service weightkg553
