Medium Duty Metal Wire Mesh , Aluminum Wire Mesh Cable Tray Hot Dipped Galvanized

Medium Duty Hot Dipped Galvanized Wire Mesh Cable Tray Length 3000mm


Wire Mesh Cable Tray management system provides value through jobsite flexibility and labor savings. Our system combines strength, lightweight construction, depth, and unmatched adaptability to support cables, tubes, and gas-tight pipes in a fast and economical way.

Cable tray material
1. Carbon Steel
2. Pre Galvanized Steel Plate (GI, G.l.)
3. Stainless Steel SS304 and SS316L
4. Aluminum
5. FRP (GRP, Fiberglass)

Dimensions:
Cable Tray dimensions are all internal.
Depth of 50mm, 100mm &150mm
Widths of 50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 450mm, 500mm &600mm
Length of 2997 fit max loading capacity in 40’ft containers.
Wire Mesh Cable Trays are constructed with a 50mm x 100mm mesh
configuration. Diameters of wires are 5.0mm.

Main Parameter of Stainless Steel Flexible Duct

Surface Finish:
Electro zinc plated for indoor use to BS EN 12329-2000, 12 microns thick.
Powder coated - for indoor use to JG/T3045-1998, between 6 and 10 microns thick
Hot Dipped Galvanized for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
Electrolytic Polishing for stainless steel use


Dimension Range of Cablofil cable tray

Wire mesh Installation Notice:
Bends, Risers, T Junctions, Crosses & Reducers can be made from wire mesh cable tray straight sections flexibly in projects.

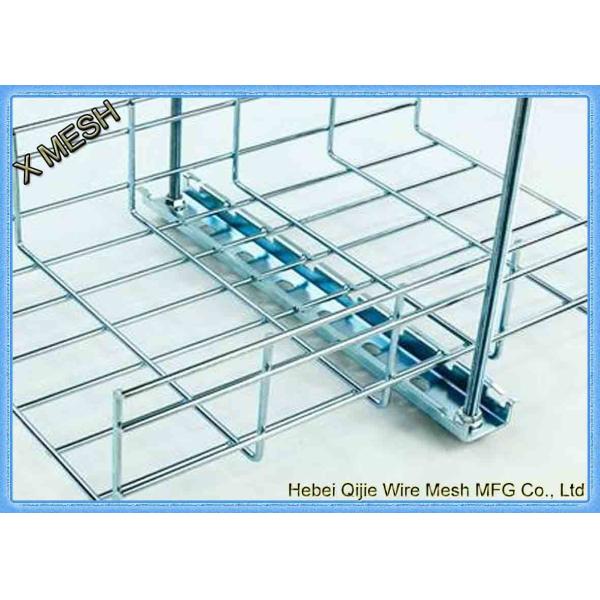

Trays shall be supported at a maximum span of 2.5m by trapeze, wall, floor or channel mounting methods and will not exceed maximum loads as specified by the manufacturer.
Wire Mesh Cable Tray systems can be safely employed in places where the temperature ranges between -40°C and +150°C without any change to their characteristics.

PACKING
1. Bulk 2. Wooden box 3. Stretch film packaging 4. According to customer's requirement
