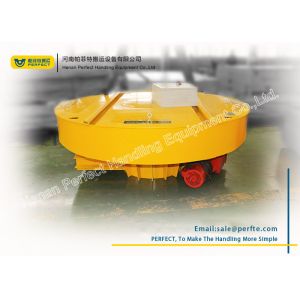

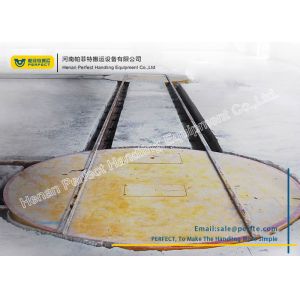

Two Cross-Rails Industrial Electric Turnplate for Poly Directional
Movement
Product Description of Industrial Turnplate
The Industrial Turnplate is one of our patented products, which can
make the rail transfer cart turning on the cross rails. When the
cart running on the turntable, there will be a limit switch make
the cart stop, and then operate the turntable turn whatever
direction you want. The Industrial Turnplate is equipped with rails
to realize the joint or the cross rails.
Product Application
The Industrial Turnplate is one of our patented products, which can
make the rail transfer cart turning on the cross rails. When the
cart running on the turntable, there will be a limit switch make
the cart stop, and then operate the turntable turn whatever
direction you want. The Industrial Turnplate is equipped with rails
to realize the joint or the cross rails.
Working Principle
The electric material handling turntable is designed for cross
rails to turn with 90 degree in warehouse and plants. Its working
principle is that there are also rails installed on the turntable,
when the rail transfer cart runs on the turntable, the turntable
can be rotated automatically or manually until precisely connecting
with the destination rail, then the transfer cart runs on the
vertical rail. The turntable is suitable for many occasions, such
as ring rails, vertical rails, and crossing rails etc. The
turntable system run steadily and has features as high rail
jointing accuracy and can meet full automatic electrical operation.
Application Show of Industrial Turnplate
The Industrial Turnplate can be sutiable for many fields, such as
assembly line (ring production line, loop production line),
metallurgy industry (steel ladle), warehouse transport, ship
industry (maintenance, assemble, container transport), workpiece
transport in workshop, lathe transport, steel factory (steel
billet, steel plate, steel coil, steel pipe, section steel, steel
structure), construction (bridge, simple building, concrete,
concrete column), petroleum industry (oil pump, sucker rod and
parts), energy (polycrystalline silicon, generator, windmill),
chemical industry(electrolytic cell, retort etc), railway (rail
maintenance, rail welding, train tractor).
Characters of Industrial Turnplate1. Can load up to 300t.
2. Easy maintenance.
3. Easy turn bearing for smooth rotation.
4. Flat surface and with non-slip surface.
5. Smooth rotation without noise and vibration.
6. Lifting holes for easy installation and transport.
7. Running steadily and has high rail jointing accuracy.
8. Can meet full automatic electrical control is you need.
9. The Industrial Turnplate is designed depend on the working
condition. You can add special function, such as lifting table,
high temperature resistance, anti-explosion, etc.
Technology Progress of Perpendicular Rail Traverser
CNC cutting
Cutting the steel plate from the raw material warehouse to the nc
cutting workshop. After cutting, workers will do some simple
processing, such as chip movement and layout.
Preliminary assembly
According to the plan, cut the steel plate together
welding
Weld steel plate with automatic welding machine after pre-assembly
Welding processing
Test the welding part after welding, polishing and burr. Welding
stress is eliminated after welding
Spray primer
The transport structure is then processed to spray painting
workshop. The main ingredient of primer is zinc rich epoxy
anti-rust paint. The primer is two coats
assembly
Assemble the structure after the wheel, motor and gear box
The paint coating
Transport group loading to the gallery to check the integrity of
the primer. And then the paint is finished
debugging
After the commissioning of the car, after the electric control
system is painted, the trolley will be tested without load. After
the no-load test, the car will be loaded. After the inspection, the
wheelbarrow will be transported to the warehouse.
