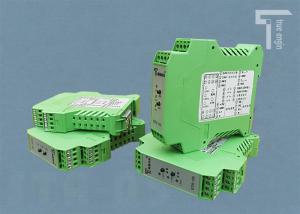

Tension Transducer Strain Gauge Amplifier Small Size For Tension
Load cell Tension Control
Tension Transducer Tension Amplifier Work With Tension LoadCell for
Flim Winding Machine
1. Preface
Tension transducer STA - 05 is the tension of Intelli gent tension
transducer instrument . By using of key operation will complete
zero alignment,calibration,convert the left or right tension sensor
signal into astan dard industrial control signals, 0 ~ 10V / 0 ~ 5V
and 0 ~ 20 mA output signal can be provided to PLC for automatic
control .
2. Features
1. Key intelligent operation,outside without adjust potentiometer.
2. Hardware and software to restrain power frequency interference,
output steady and reliable.
3. Adapt DIN-rail mounting,easy and convenient.
4. Adapt SMT ,small size,light weight.
5. Tension controller with STS ans STSA for option.
| Parameters |
| Model | STA-05C | STA-05B |
| Power Supply | DC 24V |
| Input Analog singal | L+~L-;R+~R-;Left,right STS tension loadcell signal (0~200mv,power
supply DC5V) | L+~L-;R+~R-;Left,right STSA tension loadcell signal (0~15mv;power
supply DC5v) |
| Control output | 1.Vout-GND:DC0~10V/0~5V
2.Iout-GND:DC0~20mA |
|
| Fixed output | 5V+-GND:DC5V tension loadcell power supply |
| Outline size | 115x100x23mm |
3. Operation and using
Abnormal calibration
1)The signal is too big, reason as follows:
a. The mass of weight is more than the range of tension
sensor,please confirm the weights and the rated value of tension
sensor.
b. STA-05B can only use the Strain- gauge sensor
2)The signal is too small,reason as follows:
a. Wrap angle is too large,please wrap again and reduce the wrap
angle.
b. The force caused by film tension point to the screw ends of
tension detector,please change the directi-
on of then sensor.
c. STA-05C can only use the Differential sensor.
d. Tension detector malfunctions, please replace it;
The wrong wiring ,please re- wiring;The cable is damaged,please
replace it.
STA-05 Tension signal amplifier.pdf
