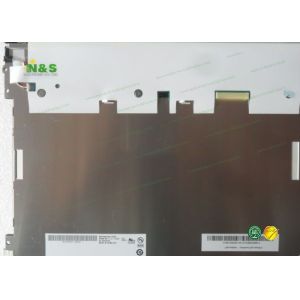

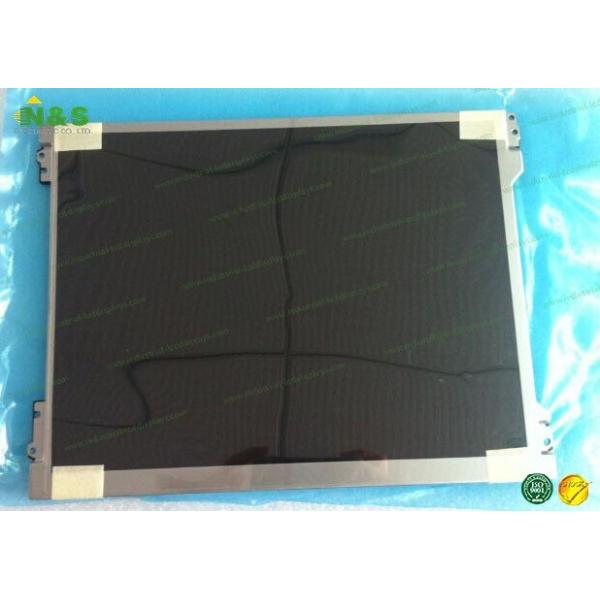

    AUO G121XN01 V0 12.1 inch industrial lcd screen Normally White with 245.76×184.32 mm Active Area

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G121XN01 V0
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    AUO G121XN01 V0 12.1 inch industrial lcd screen Normally White with 245.76×184.32 mm Active Area

    AUO G121XN01 V0 12.1 inch Normally White with 245.76×184.32 mm Active Area 60Hz


    G121XN01 V0 Characteristic

    Panel Brand :AUO
    Panel Model :G121XN01 V0
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :12.1 inch
    Resolution :1024(2)×768(2) , XGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :245.76×184.32 mm
    Outline :279×209×9 mm
    Surface :Antiglare, Hard coating (3H)
    Brightness :500 cd/m² (Typ.)
    Contrast Ratio :700:1 (Typ.)
    Display Colors :262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 70%
    Response Time :25/10 (Typ.)(Tr/Td)
    Viewing Angle :80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :9S2P WLED Embedded (LED Driver)
    Signal Interface :LVDS (1 ch, 6/8-bit) , 20 pins
    Input Voltage :3.3V (Typ.)

    AUO G121XN01 V0 Mechanical Features

    Panel Size :12.1 inch
    Dot Resolution :1024(2)×768(2) (XGA)
    Pixel Configuration :RGBW Rectangle
    Pixel Density :105 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.120×0.120 mm (H×V)
    Pixel Pitch :0.240×0.240 mm (H×V)
    Weight :495g (Max.)
    Surface :Antiglare, Hard coating (3H)
    Active Area :245.76×184.32 mm (H×V)
    Bezel Area :250.8×189.4 mm (H×V)
    Outline Dimension :279×209 mm (H×V)
    Outline Depth :6.0/9.0 (Typ./Max.) mm

    Competitive Advantage:
    1. Rich experience.
    Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

    2. Great quality and high purity
    Good quality is one secret for our success.

    3. Safest and fastest delivery.
    We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
    4. Good after-sales service.
    24/7 is available. Try our best to solve various problems customers encountered!

    Quality Control:

    1. Visual Inspection

    Make sure No damage, No Scratches, No dusty, No light leakage.

    2. Function Inspection

    Make sure all functions are 100% tested ok


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    X139BLB01.0AUO1.39"400×400
    H381DLN01.0AUO3.8"1080×1200
    H497TLB01.4AUO5.0"720×1280
    H163QLN01.0AUO1.63"320×320
    H139BLN01.2AUO1.39"400×400
    H500TLB01.0AUO5.0"720×1280

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
