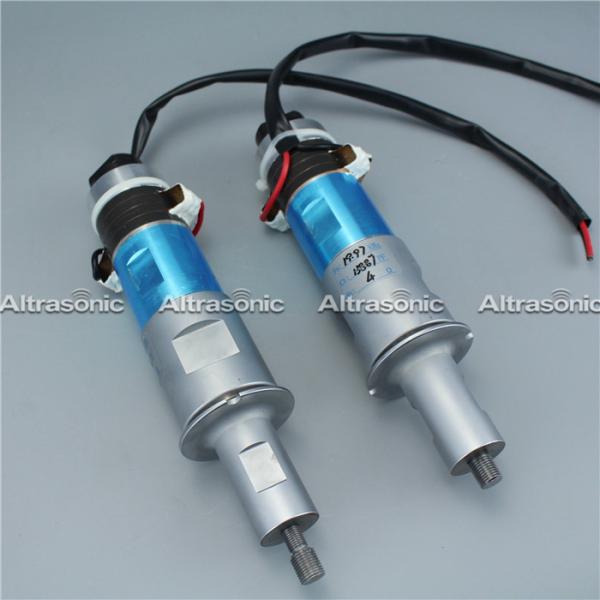

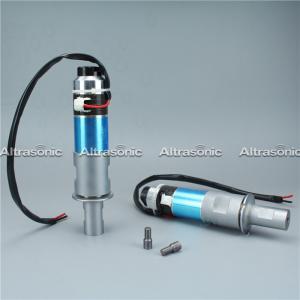

20khz 1500w Ultrasonic Transducer ter with Titanium Booster for
Welding Equipment
Specifications:
| Name: | Ultrasonic Transducer with Booster and flange |
| Frequency | 20khz |
| Output power | 1500watt |
| Joint bolt | M16*2 |
| Ceramic disc Diameter | 50 mm |
| Flange size | Could be designed as requirement |
| Bolt | Fixing with transducer body |
| Amplitude | 12μm |
| Application | welding machine |
Description:
The Transducer with booster for 20khz machine, apply to the ultrasonic welding.
First, all of the parts are all new
The parts are made from CE certified materials in tightly
controlled manufacturing processes, assembled and
tested in a climate-controlled environment using carefully
calibrated equipment, then properly aged and re-tested to ensure
performance that duplicates the OEM part.
Warranty:
We offer the same warranty as the OEM, namely, three years one-time
replacement.
Simply ship the broken unit back to arrive within three years of
original shipment, and it will be replaced
(one time).
Applied Range:
Replacement ultrasonic converter for 20khz Rinco machine, for use
with 20KHz welding machine.
Competitive Advantage:
- Titanium materials and Aluminum materials optional.
- Once assembled, the transducers are aged before testing and final
assembly. The properties of piezoelectric materials can change with
time and pressure, so a bit of time on the shelf prior to testing
will identify nonconforming material.
- One by one testing to ensure that each transducer performance are
excellent.
- In good heat resistance, can be used in a wide range of temperature
with long life and high reliability.
What we can do for you,
- OEM - special custom-made the ultrasonic transducers or parts for
you, and save cost for you.
- Supply Replacement converter - Including NTK, Branson CJ20, CR20,
922JA..., Dukane 110-3122, Rinco brand and so on.
- For some special items, you can provide us with samples, then we
can give you a competitive price and custom-made it for you.
Packaging & Shipping
1 Standard exported package: Internal anti-collision protection,
external export wooden box packaging.
2 Shipping by Courier, by air, by sea according to customers'
requirements to find the most suitable way,
3 Responsible for the damage during the shipping process will
change the damage part for you for free.
4 Supply with the suitable voltage input and source plug according
to your country requirements.
Our Services
1. Help customer analyze product project and provide welding
solution.
2. Freely sample welding test.
3. Provide professional welding solution.
4. Skilled design services.
5. Provide shipping/delivery information checking service.
6. One year guarantee, all life maintain promise.
7. 24 hours feedback speed by email of others.
