Overlap-weld PEX-AL-PEX multilayer pipe use for floor heating
system
PEX cross-link can be over 60% with cross-link procedure .standard
working pressure 1.0Mpa/10bar. PE-Xb is laminated with the aluminum
layer and special glue in the middle. it is also called five layer
composite pipe: PEX/glue/AL/glue/PEX.
Within over 10 years working in PEX-AL-PEX fields , and after years
develop on quality management, now we can do control of quality
according to three international standards as: America ASTM F1281,
Spain AENOR, Australia SAI. We also give warranty 2years to
customers of quality inspect after goods arrive.
1,certificates:Iso,ce
2,size:DN1216-3240
3,used for hot water,cold water,gas transportation.

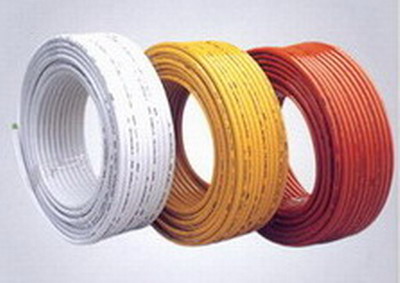

4,colour:yellow,red,white,black.
Main Characteristics |
Thermal conductivity | 0.45w/(m.k.) |
Coefficient of heat expansion | 0.025mm/(m.k) |
Bend radius | ≥5D(D means outside diameter) |
Oxygen-permeability | 0 |
Coefficient of heat roughness | 0.0004mm |
other | Static-free,longevity |
Following is the condition we must go by when we use it: |
Specification | Minimum | Min pipe | long-term | working temperature | working pressure |
burst pressure | ring strength | hydrostatic strength | °C |
mm | (Mpa) | (N) | (Mpa) | cold pipe | hot pipe | (Mpa) |
1216 | 7 | 2300 | 2.7 | -40~60 | -40~95 | 1.0 |
1418 | 6 | 2300 | 2.7 |
1620 | 6 | 2300 | 2.7 |
2025 | 5 | 2500 | 2.7 |
2632 | 4 | 2500 | 2.3 |
3240 | 4 | 3500 | 2.1 |
Multilayer pipe is five-layer pipe combines the advantages of metal
and plastic pipe, while eliminating the disadvantages of both
material.
-classified according to application: Cold water pipe, hot water
/heating pipe, gas pipe.
-classified according to welding method: Overlap-welded and
butt-welded.
specifications and package:
Hot water pipe
| PEX-AL-PEX |
Specification | 1014 | 1216 | 1418 | 1620 | 2025 | 2026 | 2632 | 3240 |
packing Specification(m/roll) | 100
200 | 100
200 | 100 | 100 | 100 50 | 100 50 | 50 | 50 |
| |
