337.92×270.336 mm M170EG01 VH AUO LCD Panel 17.0 inch LCM Normally White

    Buy cheap 337.92×270.336 mm M170EG01 VH  AUO LCD Panel   	17.0 inch LCM Normally White from wholesalers

    Buy cheap 337.92×270.336 mm M170EG01 VH  AUO LCD Panel   	17.0 inch LCM Normally White from wholesalers
    • Buy cheap 337.92×270.336 mm M170EG01 VH  AUO LCD Panel   	17.0 inch LCM Normally White from wholesalers
    • Buy cheap 337.92×270.336 mm M170EG01 VH  AUO LCD Panel   	17.0 inch LCM Normally White from wholesalers
    • Buy cheap 337.92×270.336 mm M170EG01 VH  AUO LCD Panel   	17.0 inch LCM Normally White from wholesalers

    337.92×270.336 mm M170EG01 VH AUO LCD Panel 17.0 inch LCM Normally White

    Ask Lasest Price
    Brand Name : AUO
    Model Number : M170EG01 VH
    Certification : ISO9001
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 2-3 Working Days after order confirmation
    • Product Details
    • Company Profile

    337.92×270.336 mm M170EG01 VH AUO LCD Panel 17.0 inch LCM Normally White

    337.92×270.336 mm M170EG01 VH AUO LCD Panel 17.0 inch LCM Normally White


    M170EG01 VH Specification


    Panel Brand :AUO
    Panel Model :M170EG01 VH 3 Compatible model
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :17.0 inch
    Resolution :1280(RGB)×1024 , SXGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :337.92×270.336 mm
    Outline :358.5×296.5×15.8 mm
    Surface :Antiglare, Hard coating (3H)
    Brightness :250 cd/m² (Typ.)
    Contrast Ratio :1000:1 (Typ.)
    Display Colors :16.7M (6-bit + Hi-FRC) , CIE1931 72%
    Response Time :3.5/1.5 (Typ.)(Tr/Td)
    Viewing Angle :85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :2 pcs CCFL Without Driver
    Signal Interface :LVDS (2 ch, 8-bit) , 30 pins
    Input Voltage :5.0V (Typ.)

    Our Advantage :

    >>Quality Guarantee:

    Our LCD Panels are 100% original and brand new!

    Warranty : 12 months

    You can enjoy the real panels directly from the LCD panel brand distributor.

    >>Packing Guarantee:

    All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!

    >>Delivery Guarantee:

    We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!

    >>After-Sale service

    We have many years good experience on display solution.

    Any question, we will reply you within 12 hours.


    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    H546DAN07.3AUO5.5"1080×1920
    M270HVN02.3 CELLAUO27.0"1920×1080
    M270HVN02.2 CELLAUO27.0"1920×1080
    M270HVN02.1 CELLAUO27.0"1920×1080
    M270DTN01.0 CELLAUO27.0"2560×1440
    T320HVN05.7 CELLAUO31.5"1920×1080
    T320HVN05.4 CELLAUO31.5"1920×1080
    T215HVN01.2 CELLAUO21.5"1920×1080

    Panel Size :17.0 inch
    Dot Resolution :1280(RGB)×1024 (SXGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :96 PPI
    Aspect Ratio :5:4 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.088×0.264 mm (H×V)
    Pixel Pitch :0.264×0.264 mm (H×V)
    Weight :1.99Kgs (Typ.)
    Surface :Antiglare, Hard coating (3H)
    Active Area :337.92×270.336 mm (H×V)
    Bezel Area :341.6×274.0 mm (H×V)
    Outline Dimension :358.5×296.5 mm (H×V)
    Outline Depth :15.8 (Max.) mm
    Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.

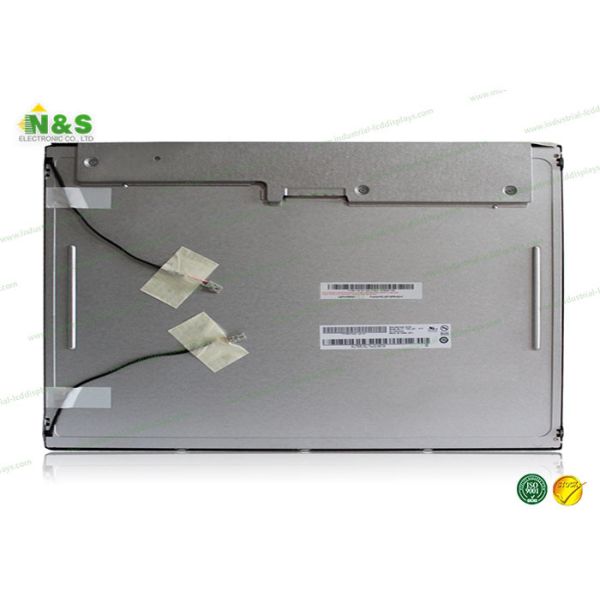

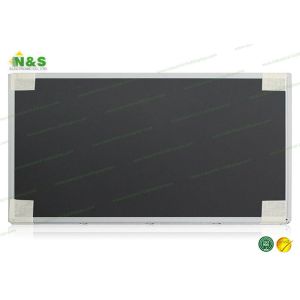

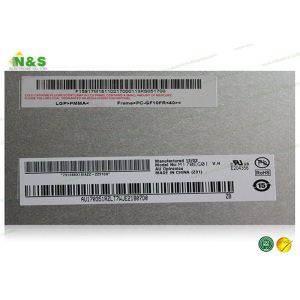

    M170EG01 VH Picture
