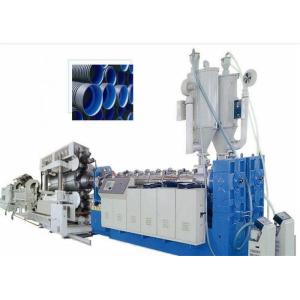

PVC Double Wall Corrugated Pipe Making Machine , PVC Double Wall
Corrugated Pipe Production Line
Quick detail:
Features of PVC Double Wall Corrugated Pipe making machine :
1. High performance single screw extruder or twin screw extruder
with special screw ensure good extrusion
2. Special structure die make the thickness of the interior and
exterior wall even, and stable molding. In addition, the thickness
of interior and exterior can be adjusted.
3.High performance vertical/shuttle corrugator ensure the pipe of
good quality and high efficiency
4.With special and accurate forming module; cooling air and water
system guarantee the production speed fast.
5.With single wall/ double wall belling inline system
Description:
1. PVC PP PE plastic double-wall corrugated pipes produced by our
double wall corrugated pipe machine have many features such as high
intensity, good flexibility,high temperature resistance, resistant
to corrosion and abrasion, etc.
They has large market which are widely used in the fields of auto
wire, electric thread-passing pipes,protective pipes of lamps and
lanterns wire, circuit of machine tool, tubes of air conditioner
and washing machine and so on.
2. Double wall corrugated pipe material is PVC,UPVC, inner layer
smooth, outer layer trapezoidal corrugated-size, hollow wall
between inner layer and outer layer. The interior smooth wall of
the pipe insures with great efficiency the main role of the pipe,
of transporting fluids, employing the distinctive features of the
high density polyethylene based compound, from which it is made:
low friction coefficient, very good abrasion resistance, remarkable
chemical resistance, very good impact resistance even at low
temperatures, durability,This plastic pipe is used in drainage of
house and building, agriculture irrigation, municipal drainage pipe
system and so on..
Specifications:
Pipe diameter
(ID. mm) |
110 |
160 |
200 |
225 |
300 |
400 |
500 |
600 |
800 |
SN8
(kg/m) |
0.9 |
1.7 |
2.1 |
2.8 |
5.1 |
8.0 |
12.5 |
18.5 |
31 |
SN4
(kg/m) |
0.75 |
1.5 |
1.8 |
2.5 |
4.2 |
6.0 |
10.0 |
13.5 |
25 |
Line speed
(m/min)/
Capacity (kg/h) |
≥6 |
≥5 |
≥4.2 |
≥3.8 |
≥2.8 |
≥1.9 |
≥1.3 |
≥1.1 |
≥0.8 |
Applications:
1. With both rigid and flexible: has sufficient mechanical
properties, at the same time has excellent flexibility.
2. Compared with the plate pipe, corrugated pipe has lighter
weight, save material, lower energy consumption, cheaper;
3. corrugated pipes with smooth inner wall can reduce the flow
resistance of liquid in the pipe, improve the transmission
capacity;
4. Good performance in resistance to chemical corrosion, can resist
the effect of alkali in the soil.
5. Pipe with corrugation form can increase the load resistance of
the pipe to the soil, at the same time, do not affect its
flexibility,so that it can be laid on the uneven ground
continuously.
6. Easily to connect and good in tightness . Easily handing, easily
install, reduce the labor intensity, reduce working period.
Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12
month.
2. during the warranty, no purposely and artificially damage change
the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the
worn part, and life-long supply the part of equipment and freely
device
