TFT G150XTN05.0 Industrial AUO LCD Panel with Embedded LED Driver

    Buy cheap TFT G150XTN05.0 Industrial AUO LCD Panel with Embedded LED Driver from wholesalers

    Buy cheap TFT G150XTN05.0 Industrial AUO LCD Panel with Embedded LED Driver from wholesalers
    • Buy cheap TFT G150XTN05.0 Industrial AUO LCD Panel with Embedded LED Driver from wholesalers
    • Buy cheap TFT G150XTN05.0 Industrial AUO LCD Panel with Embedded LED Driver from wholesalers
    • Buy cheap TFT G150XTN05.0 Industrial AUO LCD Panel with Embedded LED Driver from wholesalers
    • Buy cheap TFT G150XTN05.0 Industrial AUO LCD Panel with Embedded LED Driver from wholesalers
    • Buy cheap TFT G150XTN05.0 Industrial AUO LCD Panel with Embedded LED Driver from wholesalers

    TFT G150XTN05.0 Industrial AUO LCD Panel with Embedded LED Driver

    Ask Lasest Price
    Brand Name : AUO LCD Panel
    Model Number : G150XTN05.0
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 100 PCS PER DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    TFT G150XTN05.0 Industrial AUO LCD Panel with Embedded LED Driver

    15'' TFT LCD Panel G150XTN05.0 , Industrial Application panel with Embedded LED Driver


    Product Specification


    Panel Size :15.0 inch
    Dot Resolution :1024(RGB)×768 (XGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :85 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.099×0.297 mm (H×V)
    Pixel Pitch :0.297×0.297 mm (H×V)
    Weight :1.00Kgs (Max.)
    Surface :Antiglare, Hard coating (3H)
    Active Area :304.128×228.096 mm (H×V)
    Bezel Area :307.4×231.3 mm (H×V)
    Outline Dimension :326.5×253.5 mm (H×V)
    Outline Depth :12.0 (Max.) mm
    Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    AUO G150XTN05.0 Optical&Electronics Features


    Optical Features

    Display Mode : TN, Normally White, Transmissive
    Brightness : 350 cd/m² (Typ.)
    Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
    Display Color : 262K/16.2M (6-bit / 6-bit + FRC)
    Color Gamut : 65% NTSC (CIE1931)
    Response Time : 5.7/2.3 (Typ.)(Tr/Td)
    Viewing Angle : 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)
    White color Chromaticity : Wx:0.313; Wy:0.329
    White Variation : 1.25/1.33 (Typ./Max.)(9 points)


    Electronics Feature

    Vertical Frequency : 60Hz
    Reverse Scan : Yes (180°)
    Total Power Consumption : 7.66W (Typ.)


    Company Strength:


    1>ISO9001 certificated.

    2> Competitive Price and Short Lead-time

    3> Professional Team with Rich Experiences in LCD Screen International trade.

    4> Small MOQ Support & Fast Response to Customers

    5> Long Product Life Time

    6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.

    7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.

    8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.


    Quality Control:


    1.Visual Inspection

    Make sure No damage, No Scratches, No dusty, No light leakage.

    2.Function Inspection

    Make sure all functions are 100% tested ok.


    Packaging Details:


    • Safey package
    • Plastic trays inside
    • 2 layes of cartons
    • Fragile sign on top
    • Can be customize 3.5 inch spare parts auo used lcd panel

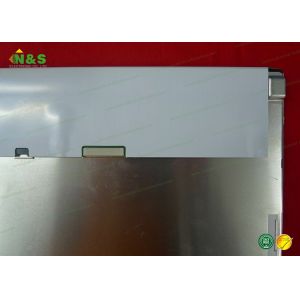

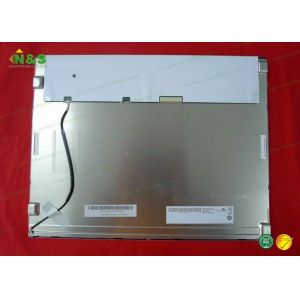

    Product Picture for AUO G150XTN05.0


    Profile Picture



    Backside Picture



    Tabs Picture
