| Brand Name : | YINGDA |
| Model Number : | FTB104C 106C |
| Certification : | ISO |
| Price : | 0.18USD-4.29USD |
| Payment Terms : | Western Union, T/T, MoneyGram |
| Delivery Time : | 5-8 working days |
| Supply Ability : | 100000 pcs / month |

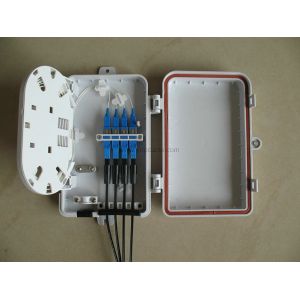

Ftth / Fttx Mini Plastic Wall Mount 4 PortS Drop Cable Fiber Optic Termination Box With SC Pigtails Adapters
MODEL: FTB104C / FTB106C
Fiber To The Home, FTTH is a transmission method for optical fiber communication. This box directly connect the fiber to the subscriber's home (user desired place). The optical fiber communication mode and strategy is different with FTTN, FTTC, HFC (Hybrid Fiber Coaxial) which are all depend on metal wires including twisted pair and coaxial cable.FTTH is used as the last one kilometer information transmission.
Features
Specifications
| Model | Dimension (H*W*D) | Cable diameter | Cable ports | Max capacity | Material | Color |
| FTB104C/106C | 210*140*40 mm | 7-10mm or 2.0*3.0mm drop cable | 1in, 4 / 6out | 4 / 6 core | PC+ABS | White |
More pictures

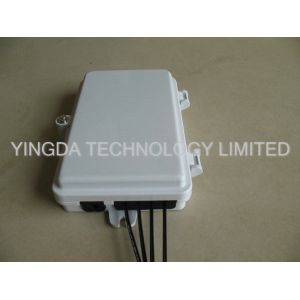

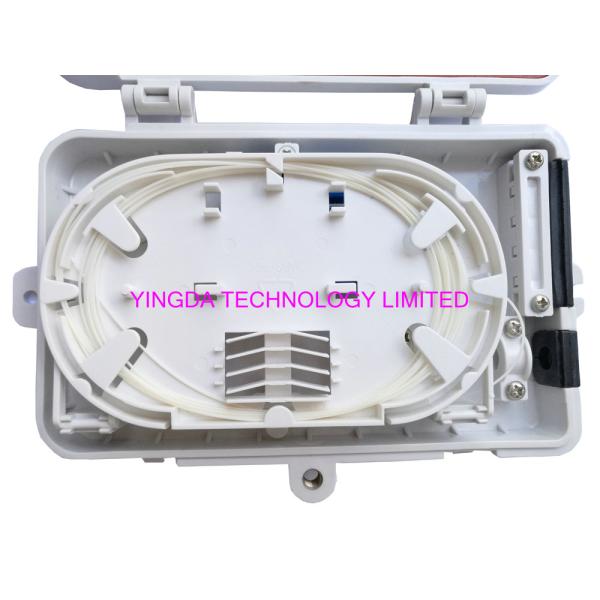

box top view box back view




Package information
| Model | Carton size | Carton qty | G.W. |
| FTB104C/106C | 51.5*47.5*46.5 cm | 60 pcs | 22.5 kgs |
|
