Chemical Laminated Glass Autoclave Aerated Concrete / Autoclave
Machine Φ2m
Applications
1. Wood industry
2. Brick industry
3. Rubber industry
4. Glass industry
5. Food industry
6.Chemistry industry
7.Spaceflight industry
6.Textile industry
Specifications:
| Items | Unit | Specifications and Parameters |
| FJK1.4-1.65×4D | FJK1.5-2×5D | FJK1.5-2.5×5D | FJK1.5-2.68×5D | FJK1.5-2.85×5D |
| Inside diameter | M | 1.65 | 2 | 2.5 | 2.68 | 2.85 |
| Effective length | M | 4 | 5 | 5 | 5 | 5 |
| Design pressure | Mpa | 1.4 | 1.5 | 1.5 | 1.5 | 1.5 |
| Design temperature | °C | 150 | 150 | 150 | 150 | 150 |
| Working pressure | Mpa | 1.3 | 1.4 | 1.4 | 1.4 | 1.4 |
| Working temperature | °C | 150 | 150 | 150 | 150 | 150 |
| Medium | | air | air | air | air | air |
| Gauge | MM | 900 | 1000 | 1000 | 1000 | 1000 |
| Effective volume | M3 | 10 | 18 | 25 | 28 | 31 |
| Gross weight | T | 7 | 9 | 16 | 25 | 30 |
| Overall dimension | M | 6×2.5×3 | 7×2.8×3 | 7×3×3.5 | 7.8×3.2×3.8 | 9×3.5×5 |
Cases display
Quick Details:
Inner diameter:2m or could be customized
Medium: compressed air
Overall dimension:6.454*2.8*2.4M or depend on its inner diameter
and length
type: Laminated Glass Autoclave
Raw Material: sand lime brick, flyash brick, slag brick, aerated
concrete block, etc.
max glass size"1.7*4.5M
heating power:72KW
air tank:3 m³
Software:CPC
transportation dimension:6.545*2.58*2.4M
Description:

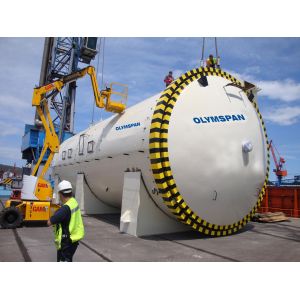

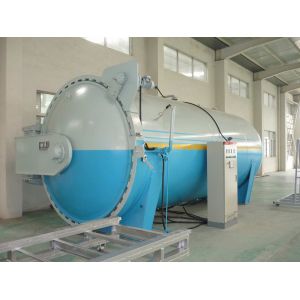

Glass autoclave is a kind of pressure vessel, which is used for
glass deep-processing. To achieve the safety demands of laminated
glass through the pressure and heat treatment process, we add
safety interlock and limit block to it, And we altogether have
tripartite precausions to ensure its safe operation and running.
It is widely used in automotive industry, aerospace, defense
industry, building decoration, etc. It is equipped with the safety
valve, the pressure gauge, the temperature element and so on.
Besides power driven, pneumatic ways to open the door, it also has
the safety interlock. There are heating elements for warming &
forcing and cooling device inside of the autoclave. It will
automatic control and detect the opening and closing doors,
temperature, pressure in autoclave by PLC controller, which is the
glass workpiece precess.
Our glass autoclave is equipped with hydraulic pressure
door-opening device;pressure maintaing and water exhausting
devide;electric interlock device and light-sound alarm device. Hand
reducer is equipped with mechanical interlock and could not be
operated when there's no pressure inside the autoclave. Limit block
is equipped to stop the door and after opening it, the door could
be opened.
Specifications:
Items | Unit | Specifications and Parameters |
FJK1.4-1.65×4D | FJK1.5-2×5D | FJK1.5-2.5×5D | FJK1.5-2.68×5D | FJK1.5-2.85×5D |
Inside diameter | M | 1.65 | 2 | 2.5 | 2.68 | 2.85 |
Effective length | M | 4 | 5 | 5 | 5 | 5 |
Design pressure | Mpa | 1.4 | 1.5 | 1.5 | 1.5 | 1.5 |
Design temperature | °C | 150 | 150 | 150 | 150 | 150 |
Working pressure | Mpa | 1.3 | 1.4 | 1.4 | 1.4 | 1.4 |
Working temperature | °C | 150 | 150 | 150 | 150 | 150 |
Medium |
| air | air | air | air | air |
Gauge | MM | 900 | 1000 | 1000 | 1000 | 1000 |
Effective volume | M3 | 10 | 18 | 25 | 28 | 31 |
Gross weight | T | 7 | 9 | 16 | 25 | 30 |
Overall dimension | M | 6×2.5×3 | 7×2.8×3 | 7×3×3.5 | 7.8×3.2×3.8 | 9×3.5×5 |
Competitive Advantage:
Autoclave is a kind of large-scale steam equipment. It can be used
to steam sand lime brick, flyash brick, slag brick, aerated
concrete block, cement pile and other cement products. Besides
that, it also has a widely application in deep processing of glass,
wood, rubber, thermal insulation material, medicine, high strength
gypsum, sizing the fishing net industry and so on. We can
manufacture various forms of the autoclaves according to the
requirements of our customers.
Experts In our company absorbed the advantages of foreign similar
products, and improved the strength calculation by analyzing the
main pressure parts and doing all kind of stress test.
