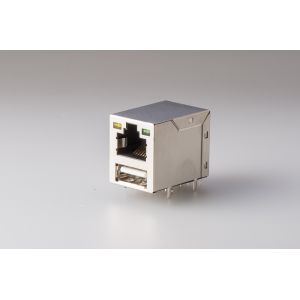

100 / 1000 Base Micro Usb Female Connector Transformer For Network Switch

100 / 1000 Base Single Port RJ45 USB Connector Tab Up Transformer for Network Switch

Feature:

1.Complies with IEEE standards and all 10/100 Ethernet specificatons including 350uH with

8MA DC bias
2.Contact:Phosphor Bronze, 6u-inch gold flashed unless specified

1.Housing:Thermoplastic LCP UL94V-0 rated
2.Operating Temperature:0℃ --70℃
3.Storage temperature:-40℃--85℃

Peak reflow temperature rating 245℃
1.Minimum1500Vrms isolation perIeee 802.3requirement

Electrical Specifications:

1.Turns Ratio:Tx & Rx+1:1±5%
2.Insertion Loss:1-30MHz:-1.0dB Max
3.Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4.Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5.Crosstalk:1-100MHz:-30dB Min
6.OCL:100KHz,0.1V,8MADC:350uH Min
7.Hi-Pot:1500VAC,1mA,1Sec

Lead-free process,compliant RoHS

Production Picture

Drawing

Why Choose PengHui

Quality :

Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .

Unit Price

Charge only 35% ~ 60% of Pulse , (Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

1. All the step are doing by ourself. So we can control the cost
2. PHC have more than 30 units automation equipments to product as possible
3. PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong .
4. With large scale of production lines, we can reach to cost reduction at the most extent

Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.

Service

PHC Offer good pre-sales & after-sales service &Strong technical support

1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product

and save time.
3. Free Samples:3-5 PCS of each part number.
4. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
5. Customer complaint:24-48 hours reply 8D report.
6. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,

or repair kits if customers are not satisfied)


Design &Technical strength
We have many more than 20years experience in connector industry engineer can support

your new project.Design a new tooling time : 30-45 workdays

Application:

1. Networking products: NIC, HUB, switch, router, bridge, work

2. Station: PC/system, printer, server, NB, IA cable modem, XDSL application, set-top-box

Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions

------------- PHC Sales & Support Team
