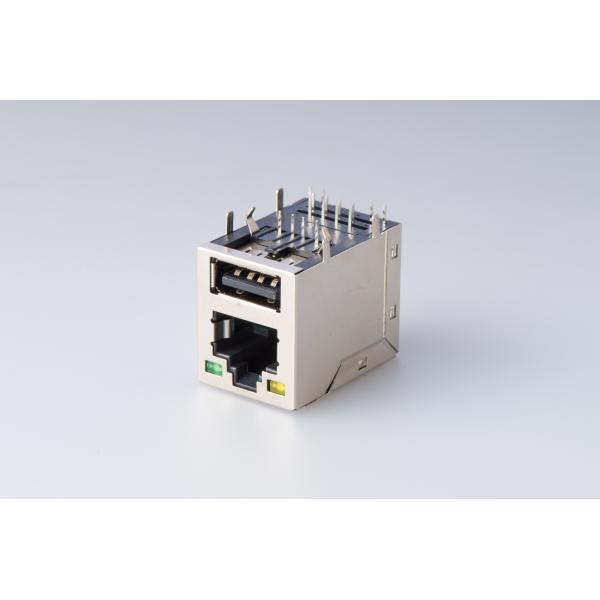

RJ45 USB 2.0 Stack Embedded Board , Rj45 Ethernet Jack Tab Up Without Transformers

    Buy cheap RJ45 USB 2.0 Stack Embedded Board , Rj45 Ethernet Jack Tab Up Without Transformers from wholesalers

    Buy cheap RJ45 USB 2.0 Stack Embedded Board , Rj45 Ethernet Jack Tab Up Without Transformers from wholesalers
    • Buy cheap RJ45 USB 2.0 Stack Embedded Board , Rj45 Ethernet Jack Tab Up Without Transformers from wholesalers

    RJ45 USB 2.0 Stack Embedded Board , Rj45 Ethernet Jack Tab Up Without Transformers

    Ask Lasest Price
    Brand Name : PHCONN
    Model Number : RB-018-YG-W
    Certification : ISO 9001 :2008 , RoHs , SGS
    Price : USD 0.7~1.5 PCS
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 5,000,000pcs/Month
    Delivery Time : 10 - 25 work days
    • Product Details
    • Company Profile

    RJ45 USB 2.0 Stack Embedded Board , Rj45 Ethernet Jack Tab Up Without Transformers


    RJ45 USB 2.0 Stack Embedded Board Tab Up Without Transformers


    Specifications


    Part Number

    Manufacturer

    Part Number

    Manufacturer

    Description

    RB-018-YG-W

    RB-018-YG-W

    PHC

    RJ45 USB 2.0 Stack Embedded Board Tab Up Without Transformers


    Series

    Connector Type

    Applications

    Mounting Type

    Connectors, Interconnects

    PHC RJ45 USB

    10/100 /1000 Mbps

    Side Enter


    Orientation

    Termination

    LED Color

    Shielding

    90° Angle (Right)

    Solder

    Yellow / Green

    Shielded , EMI Finger


    Material:


    1. Housing Material: Glass Filled Polyester(UL94V-0),ABS.PBT,NYLON
    2. Contact Material: Phosphor Bronze t=0.35mm.
    3. Plating: Contact Area-Selectine Gold Plating.
    4. Shield: Copper Alloy 0.20 Thickness Plating Ni.
    5. LED: Option


    Feature:


    1. Reduce EMI Radiation, Improve EMI Performance.
    2. Designed For Network Interface Card Application.
    3. Designed To Meet IEEE802.3u Requirement.
    4. Suitable for CAT 3, 5, 6 UTP cable or better


    Electrical:


    Current Rating 1.5 AMP
    Voltage Rating 1.25 VAC
    Insulation Resistance 500MΩMin
    Withstanding Resistance 1000VAC RMS 50Hz or 60Hz 1 Minute
    Contact Resistance 30mΩMax


    Mechanical:


    1. Durability:750 CYCLES MIN

    2. PCB Rentention pre-solder:1LB MIN


    Environmental:


    1. Storage Temperature -40°C~80°C Relative Humidity <80%.
    2. Opration Temperature 0°C~+70°C


    Lead-free process,compliant RoHS


    Drawing


    RJ45 USB 2.0 Stack Embedded Board Tab Up Without Transformers



    Service

    PHC Offer good pre-sales & after-sales service &Strong technical support

    1) New Project: Strong technical and ideal support your new design
    2) Existing projects: Try to help customer to save the cost to offer the good quality product and save
    3) time.
    4) Free Samples:3-5 PCS of each part number
    5) Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
    6) Customer complaint:24-48 hours reply 8D report
    7) Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair
    8) kits if customers are not satisfied)


    Quality :

    World’s Leader supplier of Integrated RJ45 Connector and PCB connector

    Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing , packing .All the step are

    doing by ourself. So we can control the quality.

    1. Manufactured under strict controls.
    2. ISO 9001:2008
    3. UL Certification
    4. Reach Cetitifaction
    5. RoHS compliance
    6. OEM for PULSE
    7. Active Environmental policy
    8. Every module tested 3times (not just batch tested)


    Patents Pending Products


    Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions


    ------------- PHC Sales & Support Team
