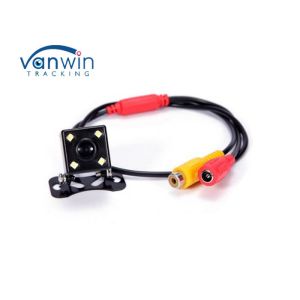

Sony CCD 600TVL Audio Taxi Security Camera IP68 Water Resistant
The mini car camera is generally used as front / Rear / Left / Right View camera for all small Cars.
The mini camera is a cost-effective product. With a compact
structure, it can be easily installed in a hidden position of the
vehicle. The image sensor is SONY CCD 420/600TVL /CMOS PC1030. The
visual angle is 170 degree, providing a large viewing scope. The
distance between the obstacles and the vehicle trail can be shown
through the scale on the screen, bringing convenience to reverse.
It can support IR lights or not.
Main Features:
- The smallest square design car rear view camera with IR (infrared)
night vision.
- Mini square design with adjustable bracket mounting
- Reversing guard line function optional
- Mirror/normal view switch optional
- BMW-style cable harness with tight connection
- Bracket vertically adjustable for best view angle
- Support long-time continous working
Specifications:
| Sensor: PC1089A or CCD 600TVL |
| Min illumination: 0Lux (IR on) |
| TV system: NTSC or PAL |
| Resolution: 600 TV Lines |
| Effective pixels: 656(H) x 492(V)PIX |
| Night Vision distance: 3 meter |
| Waterproof grade: IP67 |
Optional Fuction:
1. Mirror or Non-mirror
2. Paking line or without paking line
How to install:
1. Fix the camera to a special design hole in your car.
2. Connect the built in license plate light of the camera to where
the stock license
plate light was connected to get the power.
3. Connect the power of the camera to your car reverse lights - red
wire to positive and
black wire to negative.
4. Connect the video cable of the camera to the extension cord.
5. Connect the extension cord to your car monitor.
6. You will see the images when your car is in reverse shift.
Installation instruction:
