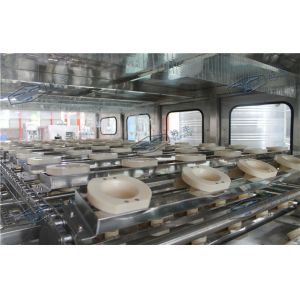

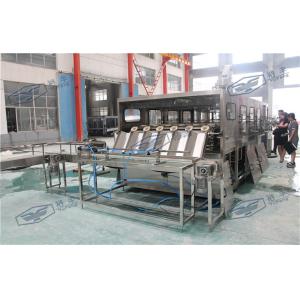

PLC Control Liquid Filling Machines With Stainless Steel Gallon Holder

PLC control auto gallon feeding type gallon bottle filler with stainless steel gallon holder

Quick Detail:

1. Automatic control

2. Capacity: 900 Barrel/H

3. Filling position: 6

4. Capping position: 1

5. Washing position: 6

6. With 5 gallon plastic bottle

7. After sales service provided: Engineers avilable to service machinery overseas

Description:

The one unit main machine includes the washer, dryer, filler and capper for the production of

5 gallon barreled drinking water. The washing process includes alkaline liquid inside and outside

washing by dirty remover! inside and outside washing by disinfecting water inside and outside

washing by pure water, the alkaline and disinfecting water can be used cyclically. The whole

Washing, filling and sealing price is controlled by PC, and has the safe device for interlock,

signal and self-detection.

Host is consist of frame, water tank, pipe, pump, cylinder, transmission, electrical appliances

and other parts ,which can complete the empty barrels of washing, filling, and capping. Through

multi-channel flushing process, it can fill quantitatively and cap automatically. The whole process

is controlled by computer, so it has stable flushing effect, accurate filling volume, and good sealing

effect.

Application range

Jar filling machine is used for 5 gallon water filling, which is composed of washer, filling and capper.

1.304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.

2. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.

3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts.

4. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.

5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows.

Advantages:

A. The device employs key components of electrical appliances and metal materials manufactured

by name brand factories from home and abroad.

B. It is not only with the advanced technology, high automatization, easy operation and reliable

performances as the genuine device from abroad, but also features with small size, small weight

and beautiful appearance,

C. Anti-corrodibility, thorough disinfection, effective anti-air pollution and high quality.

D. Available for the production of 5 & 3 gallons bottle filling, Capacity: 900B/H

E. Apply to the food & drink industry, medical industry and chemical industry widely

Specifications:

please kindly click the play button to watch the video

ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. which was originally set up as an factory in 1999,the company is growing up time by time in research and design, quality and production, sales and after sale service. Our machineries are sold to more than 50 countries in the world and over cross domestic.

We specialize in producing beverage filling-packing equipments and water treatment equipments. The quality already pass drinkable standard.At present we produce: production lines for mineral water, pure water, fruit juice,tea drink,milk drink and carbonated drink with capacity  1000-20000bottles/hour; production lines for vinegar, soy sauce and wine 1000-20000bottles/hour; 3-5 gallon barreled water with capacity 60-1200 barrels per hour and water treatment plants 1-30 ton/hour; We provide separate machinery or turnkey project.

Our products pass quality inspection executed by Bureau of Quality and Technical Supervision every year. We pass Italy CE inspection in 2011;

We have full-time development and design engineer team, we absorb technologies from Germany, Japan, France, Italy, Switzerland, combined with China's national conditions to develop high starting point and advanced technology filling equipments, degree of automation to achieve the advanced level.

We own 3700 square meters modern factory in accordance with ISO9001: 2000 certification system standards with all kinds of advanced processing equipment and testing equipment, experienced technicians, scientific and strict management, all constitute FILLPACK excellence in product manufacturing system, which provides the strongest protection for FILLPACK product quality.

We believe in FILLPACK’ s future while you choose us!
