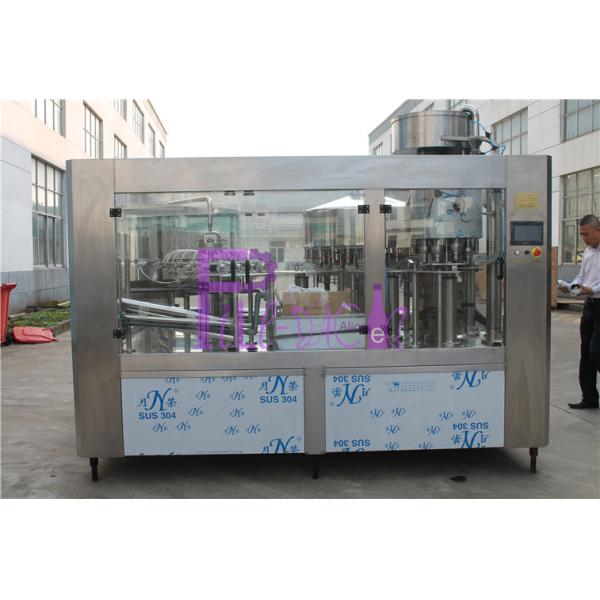

Automatic Drinking Water Filling Machine , Stainless Steel Bottled Water Production Line

Automatic Drinking Water Filling Machine , Stainless Steel Bottled Water Production Line

Quick Detail:

Name: Stainless Steel Automatic Drinking Water Filling Machine In Bottled Water Production Linety
Suitable Bottle: PET bottle

Cap type: plastic screw cap
Bottle Volume: 0.3-2L
Dimension: 3050*2060*2100mm
Function: washing filling capping 3 in 1
Technology: Advanced
After-sales service provided: Engineers available to service machinery overseas .

Introduction:

The plastic bottles are fed into the rotary rinser,filler capper by means of an input feed conveyor.A star wheel then transfers the bottle to neck holding gripper of the rinsing station.The rinsing robot indexes the bottle 180°and activates the rinsing value.Bottles after being rinsed are automatically transferred by a star wheel to the filling station.In the filling station the bottles are picked up by the neck and are allocated individual filling values.The state-of-art filling valve is so precise and accurate it gives even filling in all bottles.The filled bottles are then transferred to the capping station via a star wheel.The bottles automatically move for the capping stage where the caps release from the sorter on to the bottles.The caps are sealed automatically using special capping hands. The entire system is enclosed in a stainless steel/glass outer casing.After the capping stage the bottle are automatically ejected out to the out feed conveyor. The whole equipment is sleek and is capable of bottling various sizes of PET bottles ranging from 250 ml to 2 ltrs.

Features:

1. Integrate Bottling Rinsing, Filling and Capping into one.

2. Including bottle infeed air conveyor,tri-bloc Rinser-Filler-Capper and outfeed conveyor and cap elevator.

3. All parts that contact the bottle and liquid are made of stainless steel or food grade plastic material

4. Infeed timing screw, indexing star wheel and guider are made from noise-reducing and low-wear plastic.

5. The sturdy base is supported by four feet and is made with stainless steel sheathing secured to the tubular frame.

6. All drive train components located inside machine base to be protected from aggressive environment, extended life, clean and unobstructed cabinet surface.

7. Bottles are rinsed internally and externally, No bottle, No Rinsing.

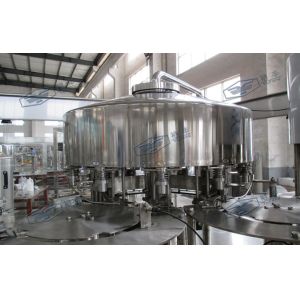

8. Precise and Accurate GRAVITY filling valves give even filling in all bottles at the same level, No bottle, No filling.

9. Magnetic capping head eliminates over-tightening of caps, No bottle, No capping.

10. PLC control and friendly touch screen HMI interface.

11. Adjustable speed by inverter.

12. Fast and easy changeover to various bottle sizes.

13. Unique design bottle neck suspend system makes bottle move smoothly.

14. Easy to operate,clean and maintain.

Technical Data:

After-sales service:

1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only

one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project

please kindly click the play button to watch the video

ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. which was originally set up as an factory in 1999,the company is growing up time by time in research and design, quality and production, sales and after sale service. Our machineries are sold to more than 50 countries in the world and over cross domestic.

We specialize in producing beverage filling-packing equipments and water treatment equipments. The quality already pass drinkable standard.At present we produce: production lines for mineral water, pure water, fruit juice,tea drink,milk drink and carbonated drink with capacity  1000-20000bottles/hour; production lines for vinegar, soy sauce and wine 1000-20000bottles/hour; 3-5 gallon barreled water with capacity 60-1200 barrels per hour and water treatment plants 1-30 ton/hour; We provide separate machinery or turnkey project.

Our products pass quality inspection executed by Bureau of Quality and Technical Supervision every year. We pass Italy CE inspection in 2011;

We have full-time development and design engineer team, we absorb technologies from Germany, Japan, France, Italy, Switzerland, combined with China's national conditions to develop high starting point and advanced technology filling equipments, degree of automation to achieve the advanced level.

We own 3700 square meters modern factory in accordance with ISO9001: 2000 certification system standards with all kinds of advanced processing equipment and testing equipment, experienced technicians, scientific and strict management, all constitute FILLPACK excellence in product manufacturing system, which provides the strongest protection for FILLPACK product quality.

We believe in FILLPACK’ s future while you choose us!
