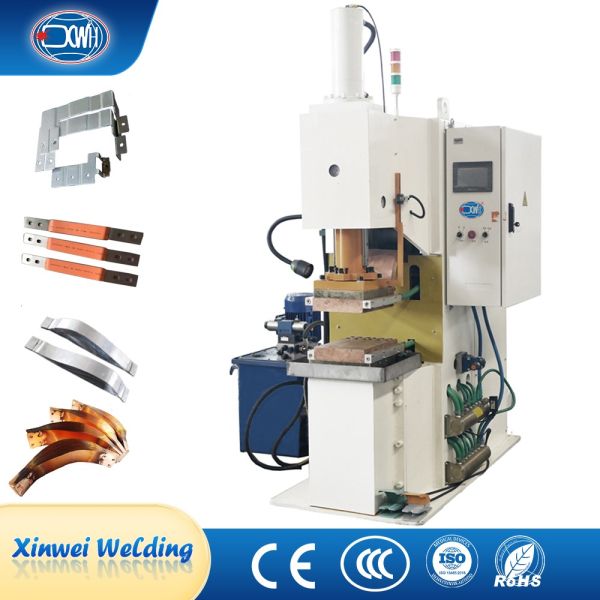

    Budget Projection Mfdc Welding Resistance Single Phase Polymer Diffusion Welding Machine

    Ask Lasest Price
    Brand Name : Xingweihan
    Certification : ISO,CE
    Price : $12,000-13,000 / set
    Payment Terms : L/C,D/A,D/P,T/T,Western Union
    Supply Ability : 100 sets per month
    Delivery Time : 25-45 working days
    • Product Details
    • Company Profile

    Budget Projection Mfdc Welding Resistance Single Phase Polymer Diffusion Welding Machine

    Product Name: Budget Projection Mfdc Welding Resistance Single Phase Polymer Diffusion Welding Machine Manufacturers
    Product Description

    The Diffusion Welding Machine is an advanced solid-state joining technology. It utilizes high-frequency induction current​ to rapidly heat the contact surfaces of workpieces to a plastic state while applying precise pressure. Under these conditions, metal atoms at the interface gain sufficient energy for mutual diffusion and migration, ultimately achieving a metallurgical bond without melting, resulting in a high-strength, low-distortion, high-quality joint. This process requires no filler material, producing joints with uniform composition. It is particularly adept at welding metals with high thermal conductivity or that are difficult to melt, such as aluminum and copper, making it a key piece of equipment for achieving high-performance dissimilar metal joining​ in fields like new energy vehicles and electrical power engineering.

    Technical Parameters
    Item/Model
    TNB-250
    TNB-300
    TNB-350
    TNB-400
    Rated Power(KVA)
    250
    300
    350
    400
    Input Voltage(V)
    220V/380V
    220V/380V
    220V/380V
    220V/380V
    Max. Short Circuit Current (KA)
    35
    45
    55
    60
    Duty cycle(%)
    50
    50
    50
    50
    Min.Force At Electrodes(N)
    1000
    1000
    1000
    1000
    Electrodes Min. Distance( MM)
    75
    75
    75
    75
    Rated Cooling Hydraulic Pressure( MPA)
    0.05
    0.05
    0.05
    0.05
    Cooling consumption(L/min)
    20
    20
    20
    20
    Max.Welding Capacity(Sheet Copper)( MM)
    7+7
    8+8
    10+10
    13+13
    Main Features

    • Clean Process & Low-Cost Operation: The welding process requires no flux or filler material, avoiding impurity introduction and post-process cleaning, significantly reducing material consumption and operating costs while ensuring the joint's chemical purity.

    • High Efficiency, Reliability & Superior Joint Quality: The equipment features high-pressure output and excellent operational stability, ensuring precise process parameters. The welding speed is fast, producing joints with high strength, excellent sealing, and stable, reliable quality, with performance close to that of the base metal.

    • Broad Compatibility with Advanced Materials: Particularly effective for welding metals with high thermal conductivity such as aluminum, aluminum alloys, copper, and their alloys. The process is well-suited for most metallic materials, enabling high-quality joints that are often difficult to achieve with traditional fusion welding.

    • Core Applications in High-End Manufacturing: Specifically designed to address the reliable welding needs for soft connections and precision components​ made of copper, aluminum, and other materials​ in sectors like new energy vehicles​ (e.g., battery interconnects), power electrical engineering​ (e.g., busbars, contacts), electric vehicles, and other high-end equipment

    Detail Images
    Different Angles of Product
    More details, please contact!
