| Brand Name : | Infineon |
| Model Number : | BSM150GT120DN2 |
| Certification : | CE, GCF, ROHS |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, |
| Supply Ability : | 1000pcs per month |
| Delivery Time : | 3-5 working days after received the payment |

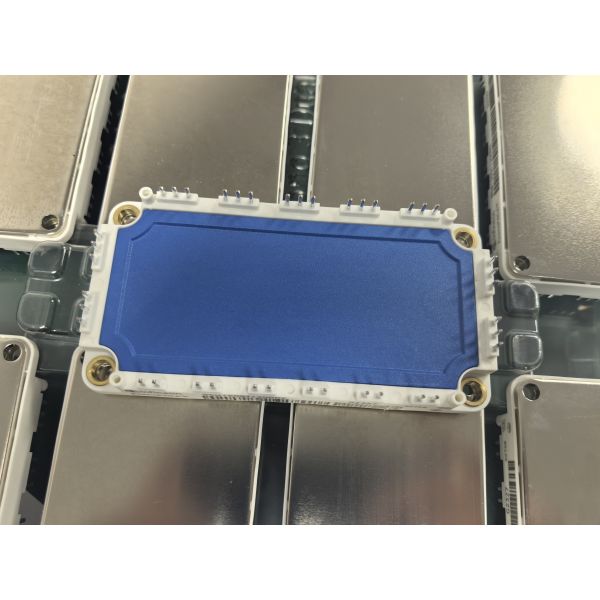

BSM150GT120DN2 1200V/150A IGBT Module Low VCE(sat) High Speed Switching Low Loss Built-in NTC Isolated Baseplate Industrial Grade for Heavy-Duty Motor Drives & Industrial UPS
Features
High Power Rating: 1200 V / 150 A
Configuration: Dual IGBT
Low Saturation Voltage: VCE(sat) for reduced conduction losses.
Low Switching Losses: Enables efficient high-frequency operation.
Built-in NTC Thermistor: For real-time thermal monitoring and protection.
Isolated Baseplate: Facilitates easy cooling system assembly and enhances safety.
High Ruggedness: Superior short-circuit withstand capability.
Low Thermal Impedance: Efficient heat dissipation for reliable operation.
Applications
Heavy-Duty Motor Drives: For controlling large AC motors in industrial pumps, fans, compressors, and extruders.
Industrial UPS: Forms the core of the inverter stage in high-capacity uninterruptible power supplies for data centers and manufacturing plants.
Welding Equipment: Provides the robust switching foundation for industrial welding machines.
Induction Heating: Used in the power circuits of high-power induction heating systems.
Power Quality Systems: Such as active power filters and static VAR generators for industrial facilities.
Description
The BSM150GT120DN2 is a high-power dual IGBT module engineered for robust performance in demanding industrial power conversion systems. Rated for 1200V and 150A, it provides a reliable and efficient power stage for high-current applications. The module is designed with a low collector-emitter saturation voltage (VCE(sat)) and optimized for low switching losses, ensuring high efficiency and minimal power dissipation.
This module incorporates critical features for system reliability, including a built-in NTC thermistor for accurate temperature monitoring and a fully isolated baseplate for simplified and safe heatsink mounting. Its industrial-grade construction guarantees high ruggedness, excellent thermal cycling capability, and long-term stability under the most strenuous operating conditions.
INFORMATION
Category | ||
Manufacturer | Infineon Technologies | |
Series | - | |
Packaging | Tray | |
Part Status | Obsolete;inventory | |
Base Product Number |
Drawing
