    Durable Earth Wire Tensioning Clamp for 50-70mm² with 20-30 kN Load Capacity and Quick Cam-Locking

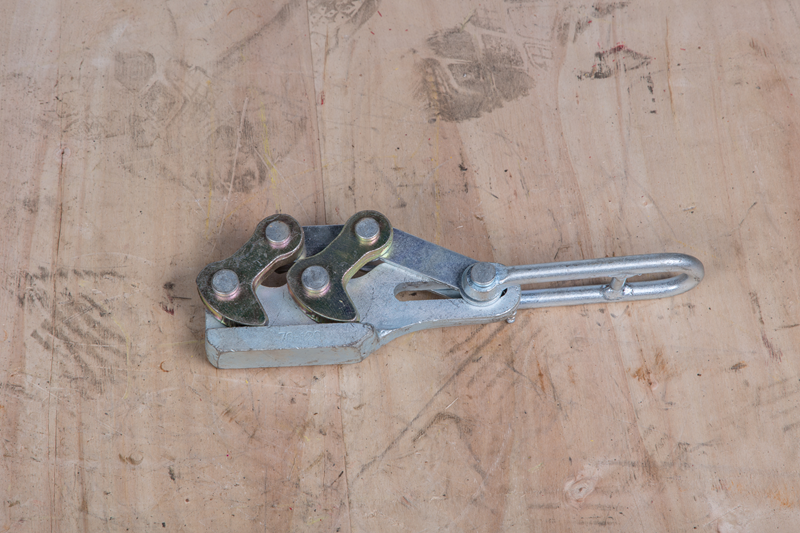

    SKDS-2 Earth Wire Tensioning Clamp for 50–70mm² | Durable Come-Along Tool for Transmission Lines

    Product Description

    The SKDS-2 Earth Wire Come Along Clamp is a high-strength gripping tool designed for safely pulling and tensioning 50–70mm² earth wires during transmission line construction. Built with forged alloy steel for exceptional durability, the clamp provides a secure, slip-resistant grip that ensures stable conductor handling in overhead stringing operations. Its compact design, corrosion-resistant surface, and reliable clamping performance make it a preferred choice for power utility contractors and lineworkers.


    Product Features

    • High Gripping Strength – Special serrated jaws ensure a firm, non-slip hold on 50–70mm² earth wires.

    • Durable Alloy Steel Body – Provides excellent resistance to deformation and long service life under heavy load.

    • Easy to Operate – Quick cam-locking mechanism enables fast installation and removal on site.

    • Optimized for Ground Wires – Designed specifically for earth wire pulling, grounding conductors, and messenger wires.

    • Safe & Reliable – Stable clamping performance prevents accidental slipping during tensioning operations.

    • Lightweight & Portable – Compact structure allows technicians to operate efficiently in aerial or tower environments.


    Key Advantages

    • Secure clamping without damaging the conductor coating

    • High load capacity suitable for professional transmission line works

    • Compatible with most stringing equipment and tensioners

    • Reduced maintenance thanks to robust materials

    • Ideal for small-to-medium conductor ranges (50–70mm²)


    Technical Specifications

    ItemDetails
    ModelSKDS-2
    Applicable Conductor Size50–70mm² ground wire / earth wire
    Maximum Clamping Force20–30 kN (customizable based on manufacturer spec)
    Jaw MaterialForged alloy steel
    Body MaterialHigh-strength steel
    Surface TreatmentGalvanized / anti-corrosion coating
    Net WeightApprox. 1.8–2.3 kg (depending on version)
    ApplicationEarth wire pulling, tensioning, overhead line stringing



    Applications

    • Overhead transmission line installation

    • Earth wire & ground wire tensioning

    • Tower erection and conductor stringing projects

    • Substation grounding wire installation

    • Utility maintenance and repair operations

    Technical Data

    Product No.Model TypeAdapt Steel Strand(mm2)Rated Load(KN)Max Open(mm)Weight(KG)
    80134SKDS-125-7010111.9
    80135SKDS-250-7020132.4
    80136SKDS-370-12030153.5

    FAQ

    Q1: Can the SKDS-2 clamp be used for ACSR or insulated cables?

    A: It is designed specifically for earth wires/ground wires. For ACSR or insulated cables, different models with proper jaw types are recommended.

    Q2: Does the clamp damage the conductor surface?

    A: No. The serrated jaws provide strong gripping without cutting or deforming properly matched conductors.

    Q3: What is the maximum load capacity?

    A: Standard models support around 20–30 kN, but it may vary by manufacturer specifications.

    Q4: Is the clamp compatible with all come-along pullers?

    A: Yes, SKDS-2 works with most standard stringing pullers, tensioners, and winches.

    Q5: Can I order customized sizes?

    A: Yes, conductor ranges and jaw types can be customized according to project requirements.
