    8 Pin PCIe power connector cable, sleeved PSU extension wire harness, electrical signal terminals customization for server GPU transmission male to female power connector applications

    Ask Lasest Price
    Brand Name : ShuangYi
    Model Number : 6+2PIN Extension Cable for GPU L=300MM
    Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959
    Price : $0.79-0.97 PCS FOB
    Payment Terms : T/T
    Supply Ability : 500000 pcs per month
    Delivery Time : 8-15 working days
    • Product Details
    • Company Profile

    8 Pin PCIe power connector cable, sleeved PSU extension wire harness, electrical signal terminals customization for server GPU transmission male to female power connector applications

    Product Description

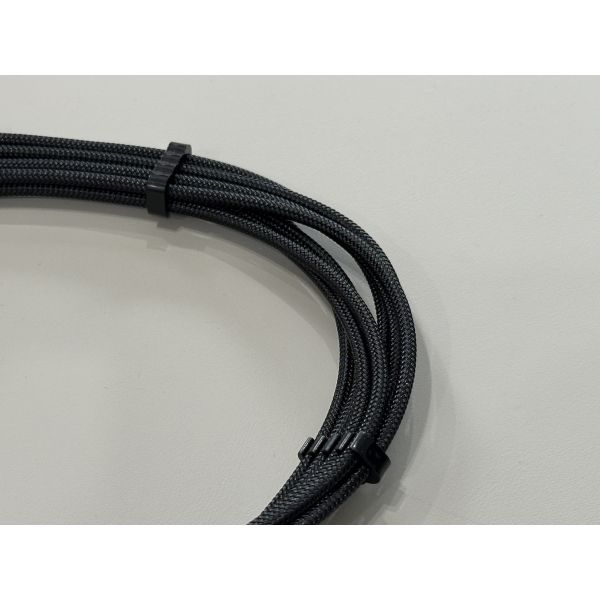

    This PSU power connector cable uses an 8 pin PCIe male to 8 pin PCIe female connector configuration, designed for high-reliability power transmission between power supplies and graphics cards or other add-in boards. Oxygen-free copper conductors and high-temperature insulation ensure low loss and stable current delivery. The braided outer sleeving improves abrasion resistance, cable management and aesthetics inside high-end PC or server chassis. Precision-molded housings and plated terminals provide secure mating, low contact resistance and long service life. Custom configurations are available for length, wire gauge, connector orientation and labeling to match different PSU and GPU layouts.



    Connector type8 Pin PCIe male to 8 Pin PCIe female power connector
    Application categoryPSU / GPU power connector cable for desktop, workstation and server
    Number of conductors8 wires, individual sleeved bundle
    Wire gaugeAWG 18–16 tinned copper (customizable on request)
    Cable length30–100 cm typical, length and routing customizable
    Conductor materialOxygen-free copper, low resistance, stable power delivery
    Insulation materialHigh-temperature PVC or XLPE, RoHS-compliant
    Outer jacketBraided sleeving, abrasion-resistant and flexible
    Rated voltage300 V AC/DC (typical PSU power cable rating)
    Rated currentUp to 8–10 A per pin under proper derating
    Operating temperature−20 ℃ to +105 ℃
    Flammability ratingUL94 V-0 housing optional
    Connector housingHigh-strength thermoplastic for electrical and mechanical protection
    Contact platingNickel underlayer with selective gold-flash or tin plating
    Customization optionsLength, color, wire gauge, labeling and connector type can be tailored

    Applications


    Power connection between modular PSU and PCIe graphics card in gaming PCs and workstations

    Power harness for GPU computing servers, mining rigs and AI accelerator cards

    Customized power cables for industrial control computers or embedded computing systems

    Replacement or upgrade PSU cables where improved routing and appearance are required

    Precautions

    Verify that the connector keying and pin definition match both PSU and GPU before installation.

    Do not exceed the rated current or bundle the cable tightly near strong heat sources to avoid overheating.

    Ensure all connectors are fully seated and latched before powering on the system.

    Avoid excessive bending radius or pulling on the cable to prevent conductor or terminal damage.

    For special current or length requirements, confirm specifications with the supplier and request customized cable designs.
